Direct Operated Hydraulic Pressure Control Valve
DZ-DP functions as a pressure control valve in the hydraulic system of industrial equipment to supply oil for the secondary system under a preset pressure. It is commonly seen in handling machinery, construction equipment, industrial lifting machine, machine tool, ship, and metallurgical equipment, among others.
Main Features
1. 5 pressure levels: 2.5MPa, 7.5MPa, 15MPa, 21MPa, and 31.5MPa
2. The pressure control valve features small volume, light weight, high safety and easy operation
3. Subplate and panel connected
| Dimension | 5, 6, 10 | |
| Max pressure (PMAX) | bar | 31.5 |
| Max flow (qvmax) | l/min | 30 |
For more details, please download the PDF file
How to Choose the Right Specification
You can determine the model you want according to the table below. Please feel free to contact us if you have any questions.

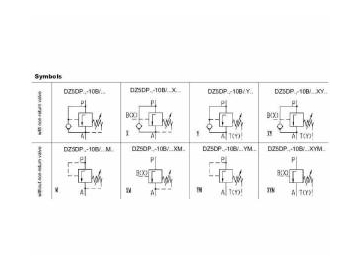

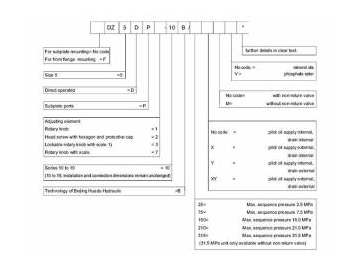

DZ5DP Directly Operated Sequence Valve

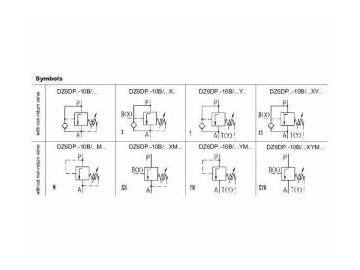

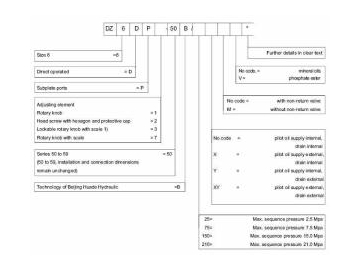

DZ6DP Directly Operated Sequence Valve

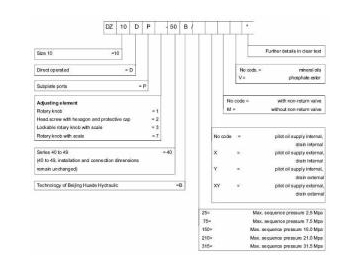

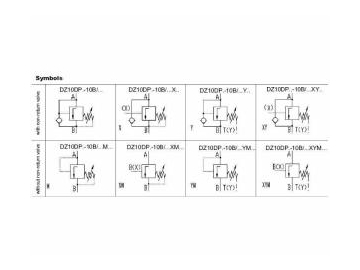

DZ10DP Directly Operated Sequence Valve
After Sales Service
1. Our valve product comes with 1 year warranty. If there are any quality issues during the warranty period, we will replace or repair the accessories for free
2. We commit that your email will be replied once we have received it, and we will come up with a solution for your problems as soon as possible
