Alloy Steel Eye Grab Hook

Alloy Steel Eye Grab Hook
Alloy Steel Eye Grab Hook
Request a Quote

The alloy steel eye grab hook has the following features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: Power plastified

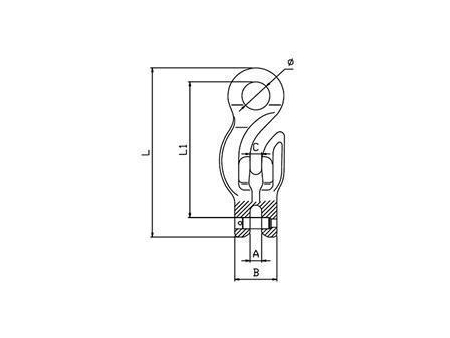

Parameters (Unit: mm)
Item code Weight (kg) Working load limit (t) Breaking load (t) ф±2 A±0.5 B±2 C±0.5 L1±2 L±3
SLR1051-6-10 0.3 1.4 5.6 18 8 32 20 88 112
SLR1051-8-10 0.69 2.5 10 24 10 36 10 116 145
SLR1051-10-10 1.33 4 16 30 12.5 48 12.5 145 184
SLR1051-13-10 2.36 6.7 26.8 37 15.5 59.5 15.5 178 223
SLR1051-16-10 4.5 10 40 45 19 70 19 216 273
SLR1051-20-10 9.0 16 64 58 24.5 85 24.5 278 351
