Horizontal Flow Wrapper, DXD-580 Series Flow Pack Wrapping Equipment
The DXD-580 Horizontal Wrapper Equipment is specially designed for solid products such as hamburgers, instant noodles, bread, and more.
DXD-580(DXD-580 series flow pack wrapping equipment is a high efficiency and multi-functional horizontal flow pack wrapper. The packing method of low film packing is suitable for the packaging of piece parts, goods with water and irregular products.
Feature
- Suitable for the packaging of large irregular products.
- Low film packing machines. The film covers the products from bottom to the top, this packing method can prevent water from leaking out from the pack bag and avoid the small and loose parts from falling.
- The low film packing machines has better air tightness. It can avoid the appearance of tearing and air leakage.
- Equipped with automatic inspection device. The length of packing bag can be adjusted in the packaging process.
- Equipped with rotating cutting head. The cutting operation and packaging operation proceed simultaneously, which improve production efficiency obviously.
- Angle folder to make the appearance of the packaged product more beautiful.
- Human-machine interface. Easy to operate.
Technical Parameters
| Production capacity | 10-45Pcs/min(Single knife) | 20-90Pcs/min(double knife) | |
| Shaped packaging | Various shapes | ||
| Range of packaging | Bag length | 240-600mm | 130-280mm |
| Width | 80-200mm | 80-200mm | |
| Height | < 110mm | < 80mm | |
| Maximum width of packing film | 600mm | ||
| Maximum diameter of packaging film | Ф300mm | ||
| Total power | 3.3kw | ||
| Power supply | 220v50-60HZ | ||
| Total weight | 900kg | ||
| Dimensions | 1800-4100*1300*1450mm | ||
Optional devices

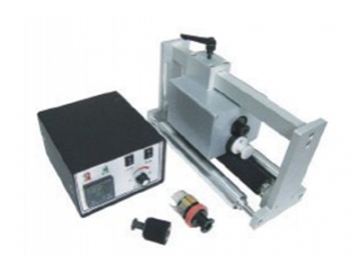

- Date coder
- Air pump
- Angle folder
