Flow Automatic Overwrapping Machine
Description
KCH-400D flow automatic overwrapping machine can achieve both arrangement and packaging automatically. It is designed to automatically wrap various tissue products, such as facial tissue, napkin, wet wipes, and box tissue. The total wrapped tissue height is less than 80mm, with the number of sheets inside ranging between 30 to 150.
The wrapping machine is equipped with our self-design wheeled heating sealing device, which ensures that the CPP packaging film will be fully sealed.

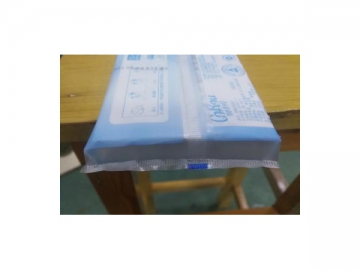

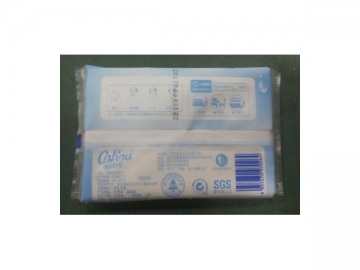

SamplesWrapping Material
Single layer or composite wrapping film material such as OPP, CPP, OPP/PE composite, PET/PE composite.

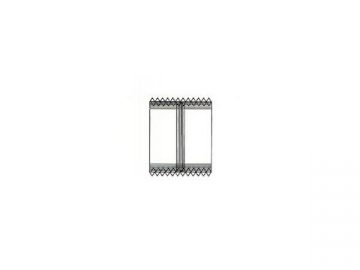

- Back seal with Zig-Zag cut

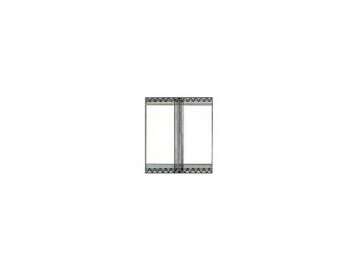

- Back seal with flat cut

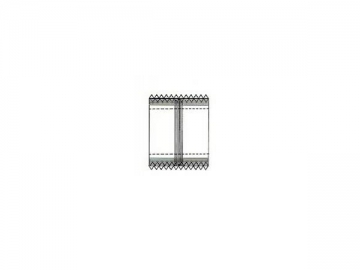

- Easy open slot

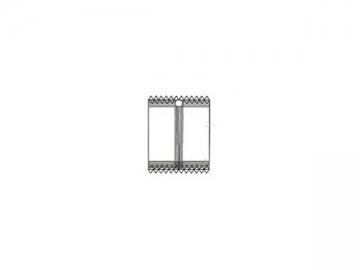

- Punched round hole
- Euro slot
| Model No. | 400D |
| Film Width | Max.400mm |
| Bag Length | 150-330mm |
| Bag Width | 50-180mm |
| Bag Height | Max.80mm |
| Film Diameter | Max.400mm |
| Packing Speed | 40-120bags/min |
| Power | 220V,50/60HZ,3Kw |
| Dimension | (L)5500×(W)855×(H)1450mm |
| Weight | about 600kg |
Details

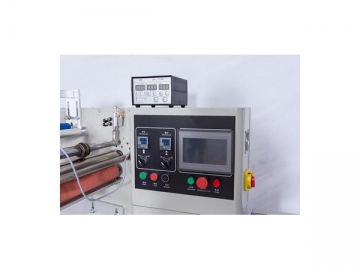

The 7-inch touch screen of the flow wrapping machine has clear parameters and the setting is convenient.

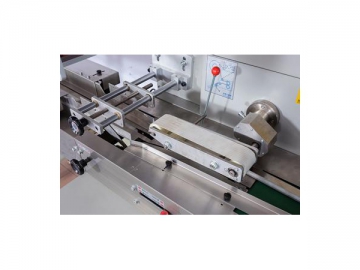

The bag forming unit can be freely adjusted into various specifications.

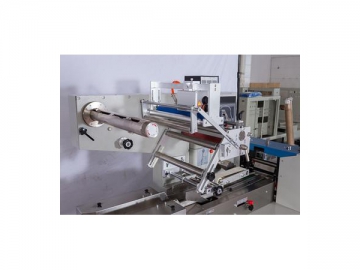

This tissue packaging machine uses ink roll coding machine whose writings and marks are complete and clear.
Features
- The overwrapping machine is controlled by double frequency converters, and the length of the bag can be changed immediately after setting. The wrapping machine doesn't need running idle without film and it can save time and film.
- The flow pack machine features a highly sensitive sensor to track the color standard position. The sealing and cutting positions are also more accurate thanks to digitizing position input.
- The temperature is controlled using an independent PID that suits various packaging materials.
- The transmission system of the tissue wrapping machine is concise, reliable and convenient to maintain.
- All the controls on the machine are achieved using software that is easy to use and update.
- The overwrapping machine has a self-diagnosis function that makes the equipment safer to use.
