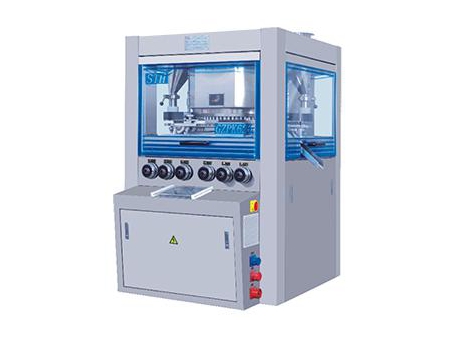

Rotary Tableting Press GZP(K)620
This rotary tableting press is primarily applied in pharmaceutical, chemical, food, and electronic industries for pressing various granular materials into firm tablets. The tablet equipment features a well-sealed structure and conforms with GMP standards. With an overload protection system, this rotary tableting press stops automatically in case of overload.
Specification:
| Model | GZP(K)-45 | GZP(K)-55 | GZP(K)-65 | GZP(K)-71 |
| Number of Stations | 45 | 55 | 65 | 71 |
| Tooling Type | D | B | BB | BBS |
| Main Compression Force (kN) | 100 | 100 | 100 | 100 |
| Pre Compression Force (kN) | 20 | 20 | 20 | 20 |
| Maximum Tablet Diameter (mm) | 25 | 18 | 13 | 11 |
| Depth of Fill (mm) | 20 | 18 | 15 | 15 |
| Maximum Tablet Thickness (mm) | 8 | 7 | 6 | 6 |
| Max. Turret RPM (r/min) | 70 | 70 | 70 | 70 |
| Max. Output (pcs/h) | 378000 | 462000 | 546000 | 596400 |
| Motor Power (kW) | 11 | 11 | 11 | 11 |
| Overall Size (mm) | 1530x1250x1900 | 1530x1250x1900 | 1530x1250x1900 | 1530x1250x1900 |
| Approx. Net Weight (Kg) | 4300 | 4300 | 4300 | 4300 |
