12mm Size Metal Shaft Rotary Potentiometer 4K Knurled, WH120 Series
Part Number
WH120
12mm dual-unit type metal shaft rotary potentiometer is reliable and durable for your application, such as consumer electronics, automotive electronics, audio equipment, medical device, etc.
Parameters
| Series | WH120-1B-2 |
| Diameters | 12mm |
| Total rotational angle | 300°±10° |
| Rotational torque | 20~200gf.cm |
| Stopper strength | ≥4kgf |
| Number of resistor elements | dual-unit |
| Total resistance | 500Ω-1MΩ |
| Resistance tolerance | ±10% |
| Shaft Types | knurled shaft |
| Element | carbon |
| Rated power | ≤0.05W |
| Voltage proof | 500V AC for 1 minute |
| Operating life | ≥10000cycles |

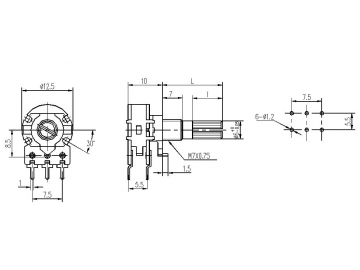

Dimensions
