QG-3 Metalloraphic Abrasive Cutter, Manual
Abrasive Cut-off Machine
- Cut-off wheel: Φ300×2×Φ32mm
- Max. cutting capacity: 85×85mm
- Motor: three-phase four-wire asynchronous motor, 3 kW
- Cutting method: manual, gravity feeding
Request a quote
Features
- QG-3 manual metalloraphic abrasive cutter performs cutting by pulling the spindle and using gravity, featuring fast rotation speed and strong cutting ability.
- Stainless steel double-sided clamp with a jaw height of 60mm offers long service life, easy maintenance, firm fixing of sample and improved stability.
- The cover comes with a left side opening for cutting long strip samples.
- Transparent shield with built-in LED lamp is convenient for observation when cutting.
- The recirculating coolant system provides coolant to the sample during the cut, enabling the surface of the spiecemen bright, smooth and free of heat damage.

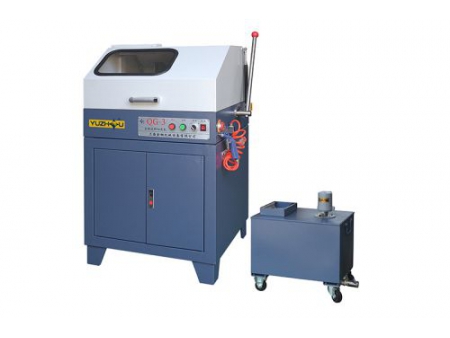

- Benchtop or floor type are optional for customers to choose.
Applications
QG-3 abrasive cut-off machine is specially developed for cutting ordinary metallographic and petrographic materials.
Technical Data
- Spindle rotating speed: 2800r/min
- Cutting table: 204×240mm with 12mm T slot
- Clamping tool: quick clamp, jaw height: 60mm
- Dimensions: 730×700×540mm (floor type: 750×730×1200mm)
- Net weight: 125kg (floor type 180 kg)
- Water tank capacity: 60L
- Pump flow: 25L/min
- Water tank dimension: 565×360×600mm
- Water tank weight: 27 kg
