Features

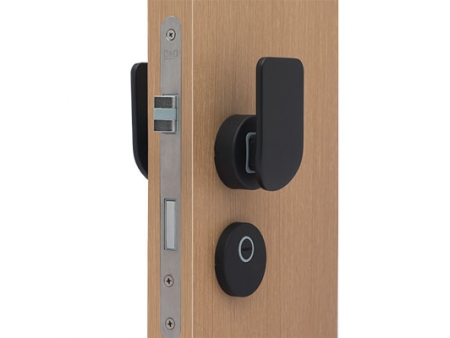

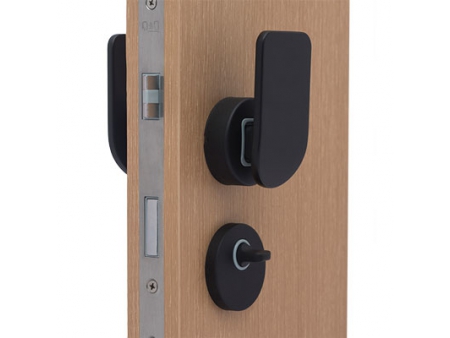

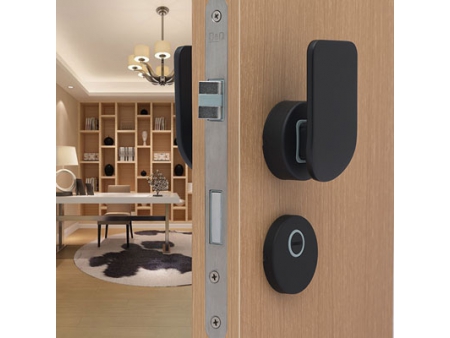

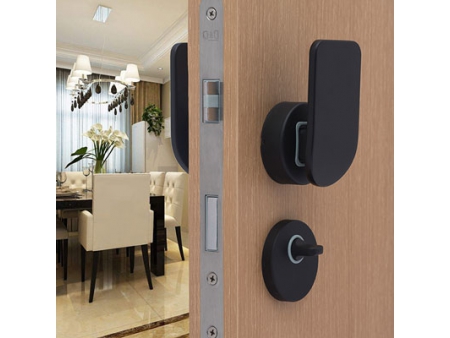

This type of push-pull mortise lock adopts a key less locking design. It could be locked with a knob from inside and unlocked with a coin from outside. When there is a state of emergency and the door is locked, it could be quickly unlocked from outside. The lock body shell is made of galvanized steel plate and the handle is made of aluminum alloy to ensure the firmness of the lock. The bolt is made of plastic POM and zinc alloy which reduces the noise and achieves a better mute effect. The appearance is stylish and uses a sleek design. The surface treatment adopts Japanese advanced technology. Various tests are carried out in accordance with Japanese JIS standards to ensure the durability of the lock both from the appearance and structure. The lock has good compatibility and the size conforms to the European standard lock size; the center distance is 72mm; the distance from door edge to the center of the mounting hole for lever handle is 55mm; the center distance of the panel mounting hole is 38mm.

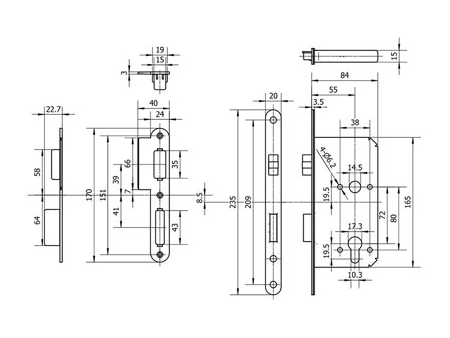

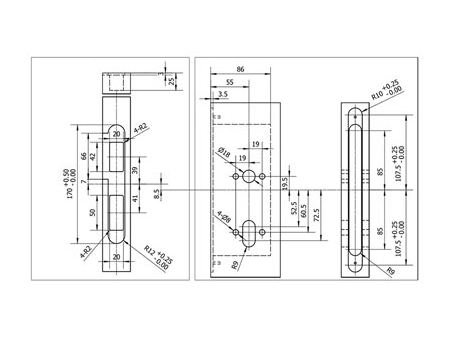

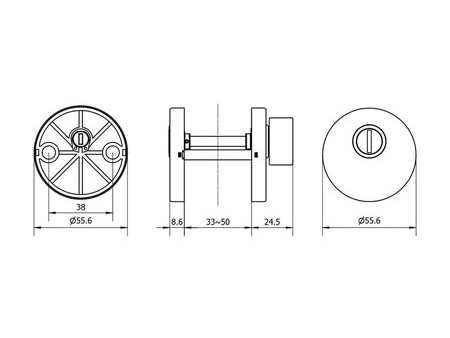

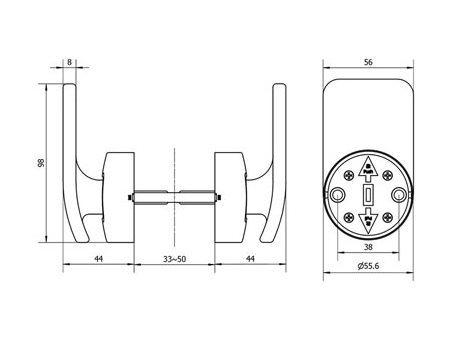

Dimensions

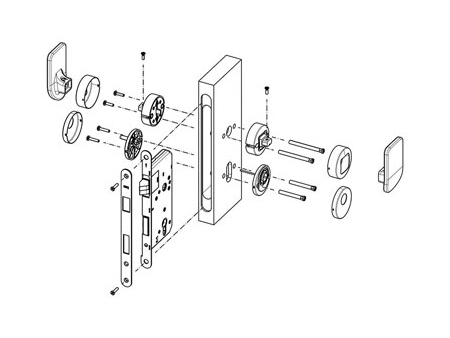

Parts List
No Name No Name
1 Inner Lever Handle 10 Outer Knob Panel
2 Inner Panel for Lever Handle 11 Connecting Screw Bolt
3 Screw for Lever Handle 12 Outer Knob Holder
4 Inner Holder for Lever Handle 13 Plate for Lock Body
5 Lock Body 14 Inner Knob Holder
6 Outer Holder for Lever Handle 15 Screw for Lock Body
7 Connecting Screw Bolt 16 Striking Box
8 Outer Panel for Lever Handle 17 Screw for Knob
9 Outer Lever Handle 18 Inner Knob Panel
Installation Instructions

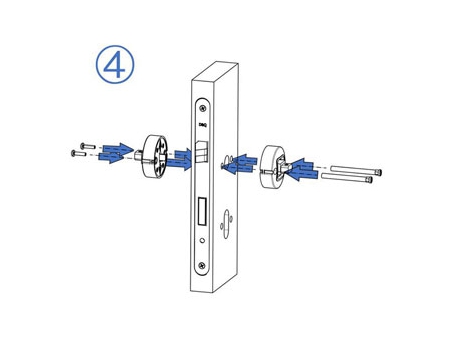

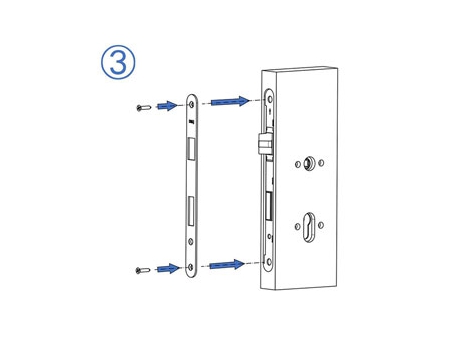

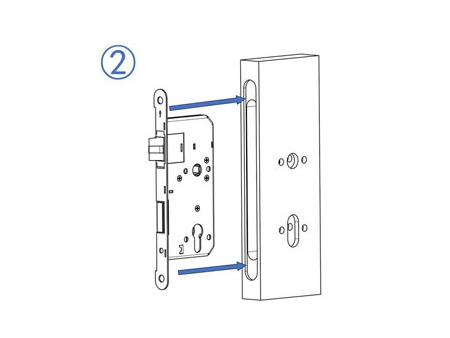

  • Determine the direction of door opening. Put the lock body into the set hole and make sure the latch bolt is on the upper side and dead bolt is on the lower side. Make sure the inclined surface of the latch bolt is facing the direction of door closing (If the direction of inclined surface is wrong, pull the latch bolt out of lock body and rotate it by 180°. Then insert it back into the lock body), Install the front plate and tighten the screws.
  • Inward opening door: push from outside and pull from inside. After installing the push-pull escutcheon panels, install the lever handles (fixed screws hole upwards) and then tighten the screws.
    Outward opening door: push from inside and pull from outside. After installing the push-pull escutcheon panels, install lever handles (fixed screws hole upwards) and then tighten the screws.
    (*Notice when installing push - pull escutcheon panels: make sure the push arrow on push plates is pointing upwards and the pull arrow on pull plates is upwards.)
  • Install the thumb turn plate. Connect the inside plate with the flat bar through the lock body flat hole with outside plate, and then tighten screws.
  • Install the striking plate on the corresponding position of the door frame and make sure that latch bolt and dead bolt can move in and out freely
  • Test after installation:Push and pull the lever handles, press the latch bolt to the inclined surface direction of the latch bolt. If the latch bolt can work flexibly, the installation is completed. If not, please reset all components.
