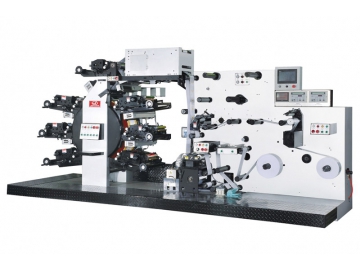

JX-460R6C+1 / JX-260R6C+1 Flexo Printing Press
- JX-6C460R+1 6 color paper label printing machine with flexo plate (with a web width of 460 mm)
- JX-260R6C+1 6 color paper label printing machine with flexo plate (with a web width of 260 mm)
-
JINXIANG’s JX-460R6C+1 / JX 260R6C+1 is intended for paper label printing, offering a clear 6 color printing on paper labels. It doesn’t matter what is being printed, whether it be the prices, bar codes, or a decorative pattern, both flexo printing presses easily fulfill customer needs. Stickers and labels feature a delicate appearance and a small size, leading to us developing these two printing machines with a maximum web width of 460 and 260mm respectively.
The following table outlines the machine parameters for both machines. We also offer customized equipment to meet customer needs for printing effect and capacity.
Technical specs
| Model | JX-6C460R+1 | JX-6C260R |
| Varnish station | 1 set | 1 set |
| Gearing | 1/8" | 1/8" |
| Max. Web width | 460mm | 260mm |
| Max. Print width | 450mm | 250mm |
| Max. unwind width | 800mm | 800mm |
| Max. Rewind width | 800mm | 800mm |
| Max. Print length | 460mm | 460mm |
| Min. Print length | 190.5mm | 190.5mm |
| Print speed | 100m/min | 100m/min |
| Machine net weight | 10000KG | 7500KG |
| Machine gross weight | 11000KG | 8500KG |
| Power of main engine | 11KW 380V | 7.5KW 380V |
| Motor power of ink dispenser (6pcs) | 420W | 420W |
| UV dryer | 30KW | 30KW |
| Machine size (W×L×H) | 5.8×1.4×2.2M | 5.8×1.1×2.2M |
Standard configuration
- Printing station (6 sets)
- Tension controller (2 sets)
- Adhesion layer and backing printing unit (1 set)
- Plate cylinder (6 sets, optional size)
- UV (7 sets)
- UV curing system(7 sets)
- Trimming unit (1 set)
- Tools (1 set)
- Printing plate mounter (1 set)
- Flexo plate proofer (1 set)
- Splicing table (1 set)
- Varnish unit (1 set)
- Reverse printing unit (1 set)
- Corona treatment unit (1 set)
- Unwinder and rewinder (1 set respectively)
- Protective layer laminator (1 set)
Optional equipment
- Cold foil unit
- Gravure printing unit
- Round screen printing unit
- Slitting and sheeting system
- Static observation system
- Cooling system
- Electrostatic eliminator
- Lamination unit and cross over unit for multi layer label production
