3g/5g/6g/7g portable ozone generator air purifier for removing odor sterilization OEM with CE
Our 1-10g/h portable ozone generators come in models producing 3g, 5g, 6g, and 7g of ozone per hour with an adjustable output of 20%-100%.. Each of our oxygen generators, including our desktop ozone generator and DP and BP series of ozone generators, are CE certified. We can also make customized ozone generators per your request.

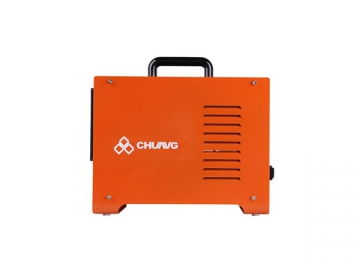

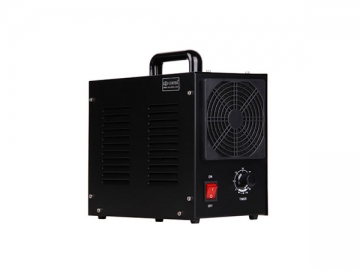

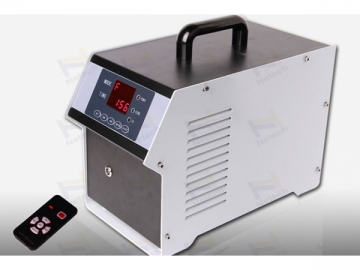

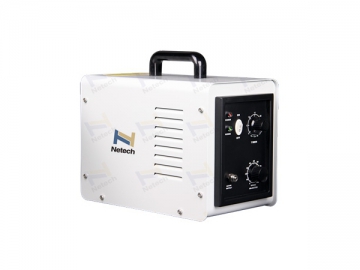

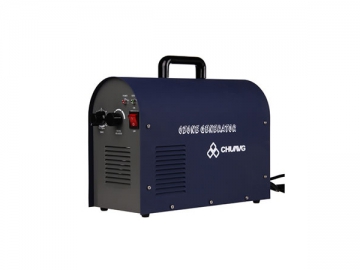

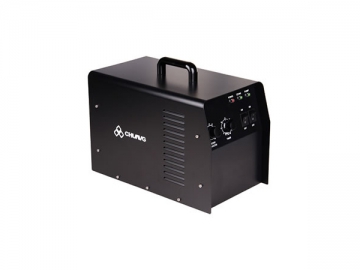

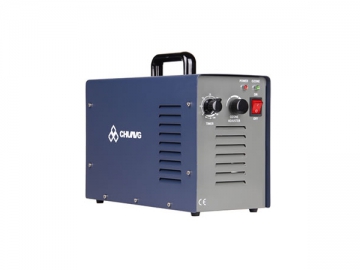

Portable ozone generator parameters CH-KTA
- CH-KTB
- CH-KTM
- CH-BS
- CH-BT
| Model | Gas flow rate | Ozone output | Power | Output gas tube | Fuse | Voltage | External size | Net weight |
| L/min | g/h | w | mm | A | V Hz | mm | kg |
| CH-KTA | 10 | 3 | 80 | φ6 | 3 | 220 50/60 | 320×175×265 | 5.3 |
| CH-KTB | 10 | 5 | 90 | 320×160×275 | 4.8 |
| CH-KTM | 10 | 5 | 90 | 320×170×270 | 5.5 |
| CH-BS | 10 | 7 | 120 | 370×160×295 | 5.6 |
| CH-BT | 10 | 7 | 120 | 365×165×275 | 6.1
|
Features
1. Two timer options: 0-30mins or continuous operation
2. Voltage: 220V/50Hz or 110V/60Hz
3. Easy to operate, portable
4. Especially suitable for home use
5. Good diffusivity: Ozone gas can reach everywhere
6. Effective sterilization which is stronger than regular disinfectants
Functions
1. Sterilization: destroys bacteria and viruses without secondary pollution in the air, on food, and on textiles.
2. Detoxification: removes residual pesticides from vegetables and fruits.
3. Deodorization: eliminates molds, smoke, and odors.
4. Purification: purifies air and water and increases oxygen levels.
5. Health: clean air and drinking water, which may benefit sleeping patterns, respiratory system, and skin care.

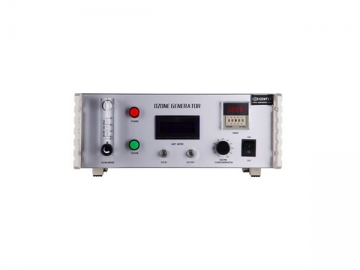

CH-ZTW-Desktop Lab ozone generator
| Item | Outside oxygen flow rate | Ozone output | Power | Output gas tube | Fuse | Voltage | External size | Net weight |
| Model | L/min | g/h | w | mm | A | V Hz | mm | kg |
| CH-ZTW3G | 1 | 3 | 80 | φ6 | 3 | 220 50/60 | 400×370×150 | 6.5 |
| CH-ZTW5G | 1 | 5 | 90 |
| CH-ZTW6G | 2 | 6 | 110 | 6.6 |
| CH-ZTW7G | 2 | 7 | 120 |
CH-DP-Portable ozone generator
| Item | Outside oxygen flow rate | Ozone output | Power | Output gas tube | Fuse | Voltage | External size | Net weight |
| Model | L/min | g/h | w | mm | A | V Hz | mm | kg |
| CH-DP3G | 10 | 3 | 65 | φ6 | 3 | 220 50/60 | 340×175×275 | 5.8 |
| CH-DP5G | 10 | 5 | 85 |
| CH-DP6G | 10 | 6 | 116 | 6.0 |
Note:
1. Above ozone capacities were tested under oxygen source.
2. Net weight may vary 10% with different plugs. Parameters may also vary with other customizations.
CH-BP-Portable ozone generator
| Item | Gas flow rate | Ozone output | Power | Output gas tube | Fuse | Voltage | External size | Net weight |
| Model | L/min | g/h | w | mm | A | V Hz | Mm | kg |
| CH-BP3G | 45 | 3 | 110 | φ6 | 3 | 220 50/60 | 390×230×310 | 8.6 |
| CH-BP5G | 5 | 120 |
| CH-BP6G | 6 | 140 | 8.8 |
| CH-BP7G | 7 | 150 |
Note:
1. Above ozone capacities were tested under oxygen source.
2. Net weight may vary 10% with different plugs.
Space sterilization reference table | No. | Ozone output | Suggested space | Working time |
| 1 | 3g | Within 10 ㎡ | 20-30 minutes |
| 2 | 5g | 10-15 ㎡ | 20-30 minutes |
| 3 | 6g | 15-20 ㎡ | 20-30 minutes |
| 4 | 7g | 15-20 ㎡ | 20-30 minutes
|
| No. | Ozone output | Water volume | Working time |
| 1 | 3g | 10L | 10-20 minutes |
| 2 | 5g | 10L | 10-20 minutes |
| 3 | 6g | 10L | 10-15 minutes |
| 4 | 7g | 10L | 10-15 minutes
|
Note:
1.When using aeration stone for water sterilization, place the aeration stone at the bottom for more uniform aeration.
2. For sterilizing meat, vegetables, or fruit in water, place food in the aeration zone.
3. The ejector should be installed in the rear of the waterway ejector valve so the water goes through the valve first.
Other space sterilization reference table | No. | Ozone Output | Shoe Cabinet | Wardrobe | Bookshelf |
| 1 | 3g | 5-8 minutes | 8-12 minutes | 5-6 minutes |
| 2 | 5g | 5-8 minutes | 8-12 minutes | 5-6 minutes |
| 3 | 6g | 3-5 minutes | 5-8 minutes | 3-5 minutes |
| 4 | 7g | 3-5 minutes | 5-8 minutes | 3-5 minutes
|
