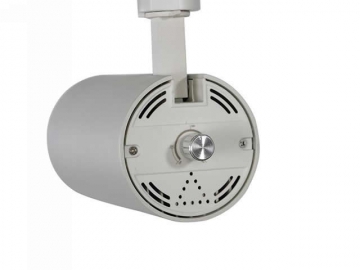

U Series CCT Tunable LED Track Lighting Head
Features
- Intelligent control of color temperature at 3-step of 2700K, 4000K and 5700K.
- The LED driver of the track light is of high quality, high efficiency and energy saving.
- We provide two kinds of track adaptor, one is PowerGear, the other is GLOBAL, for you to choose.
- Four kinds of beam angle: 15°, 24°, 38°and 60°are available.
- Four kinds of power: 15W, 20W, 25W and 30W are available.
- Environmentally friendly: it does not emit any pollution, such as lead, mercury or other pollutants
Specification
- Power 15W/20W/25W/30W
- LED Chip Epistar COB LED
- LED Driver Tridonic, Philips, OSRAM, Lifud, BOKE and other brands are available
- PF >0.9
- Input Voltage AC220-240V/AC100-240V 50/60Hz
- Beam Angle 15° 24° 38° 60°
- Characteristic Intelligent control of color temperature
- Body Material ADC12 die-casting aluminum alloy
- Adjustable 350° rotation horizontally and 90° pivot
- Housing color Black/white
- Track adapter Global, PowerGear and other brands are available
- Phase 1 /2 /3 phase
- Lifespan 50000 hours
- Warranty 3-5 Years
Dimensions
Product Models
| Model No. | Power | Dimension | LED Chip LED | CCT | CRI | Luminous Efficacy | |
| BH-TL-15W-U | 15W | Φ90*200mm | Epistar COB LED | 2700/4000/5700 | 80 90 | 90-100lm/W | |
| BH-TL-20W-U | 20W | ||||||
| BH-TL-25W-U | 25W | ||||||
| BH-TL-30W-U | 30W |
Photometric

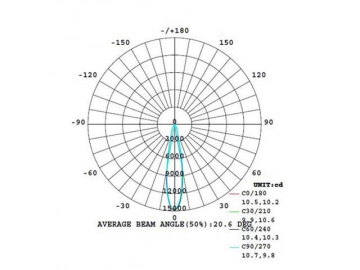

- Luminous Intensity Distribution Diagram 30W 4000K Beam Angle 15°

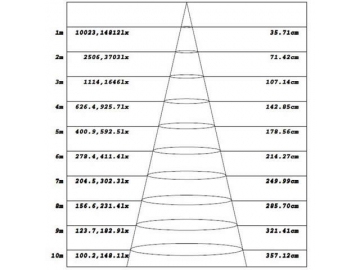

- The Average Illuminance Effective Figure 30W 4000K Beam Angle 15°
Application

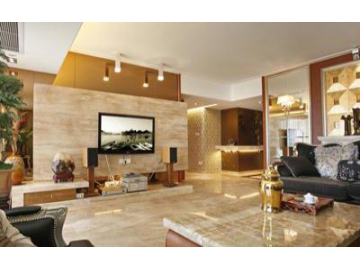

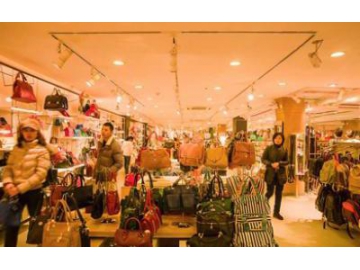

LED track lights can be used in galleries, museums, retail stores, shopping malls, exhibition halls and other commercial or private places.
