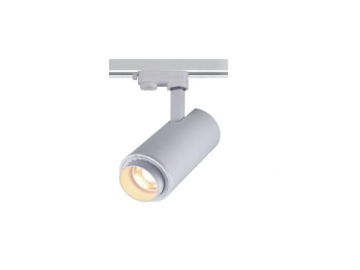

P Series LED Track Lighting Head
Application

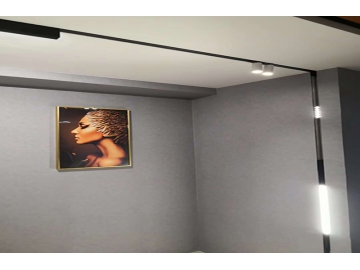

P series LED track lights can be used in galleries, museums, retail stores, shopping malls, exhibition halls and other commercial or private places.
Features
- The torch head of the P series track light can adjust the spot size or photometric intensity. The beam angle is zoomable from 10°to 60°.
- The color render index ( High CRI) is Ra97 (2700K/3000K/4000K), which displays the natural color of objects
- The LED driver of the track light is of high quality, high efficiency and energy saving.
- Different shell colors are for selection, including black and white.
- Three kinds of power: 30W, 35W and 40W are available.
Specification
- Power 30W/35W/40W
- LED ChipCitizen/CREE COB
- LED DriverTridonic, Philips, OSRAM, Lifud, BOKE and other brands are available
- Dimming optionsNon-dimming, DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF>0.9
- Body Material 6063 brushed aluminum alloy
- Adjustable350° rotation horizontally and 90° pivot
- Housing color Black / white
- Track adapterGlobal, PowerGear and other brands are available
- Phase1 /2 /3 phase
- Lifespan50000 hours
- Warranty3-5 Years

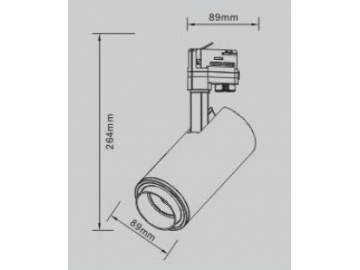

Dimension
Product Models
| Model No. | Power | Dimension | LED Chip | CCT | CRI | Luminous Efficacy | Beam Angle | Input Voltage | Track adapter |
| BH-TL-30W-P | 30W | Φ89*L198mm | Citizen/ CREE COB | 2700K 3000K 3500K 4000K 5000K | 80 90 97 | 90-100LM/W @CRI80 | 10°-60° zoomable | AC220-240V/ AC100-240V 50/60Hz | 1 phase 2 phase 3 phase |
| BH-TL-35W-P | 35W | Φ100*L198mm | |||||||
| BH-TL-40W-P | 40W | Φ100*L198mm |
