YONG-FENG F51 Automatic Hose Production Crimper
Application

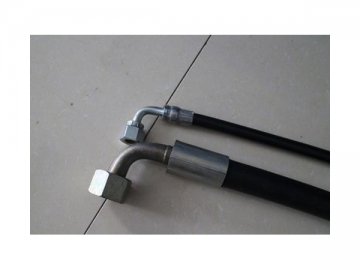

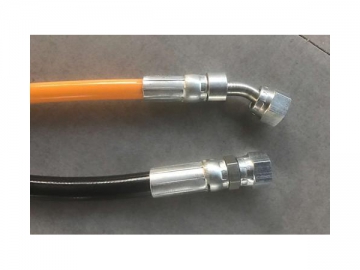

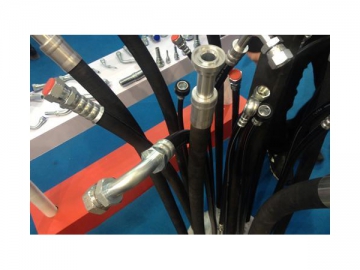

The crimping force of the YONG-FENG F51 automatic hose production crimper is 3200KN, with an opening diameter of 118mm, a crimp range of 6~73mm and 14 sets of standard dies. YONG-FENG F51 crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, air conditioner hoses and bathroom hoses etc.
Max. inner diameter
Industrial hoses: 2½"
Hoses with 2 braided wires: 2"
Hoses with 4 spiral wires: 2"
Low pressure hoses φ6, φ8, φ10, φ12
| Crimp head material | FORGE STEEL |
| Crimp range | 6-73mm |
| Hose size | 2", 4SN |
| Max. Crimp range | 118mm |
| Opening without dies | 118mm |
| Opening | +25mm |
| System pressure | 31.5Mpa |
| Crimp force | 3200kN |
| Drive | 3kw/4kw |
| Standard voltage | Customized |
| Control | Full automatic |
| Standard dies | 14 sets |
| Weight | 270kg |
| L x W x H | 820*510*1140mm |
Specification of dies
High pressure dies:| No. | Φ6 | Φ8 | Φ10 | Φ13 | Φ16 | Φ19 | Φ25 | Φ32 | Φ38 | Φ51 |
| Crimp range | 15-25mm | 18-28mm | 20-30mm | 23-33mm | 26-36mm | 29-39mm | 37-47mm | 46-56mm | 51-61mm | 63-73mm |
| Length | 45mm | 45mm | 45mm | 50mm | 65mm | 65mm | 80mm | 80mm | 80mm | 80mm |
Low pressure dies:
| No. | Φ6 | Φ8 | Φ10 | Φ12 |
| Crimp range | 6-16mm | 8-18mm | 10-20mm | 12-22mm |
| Length | 35mm | 35mm | 35mm | 35mm |
Details

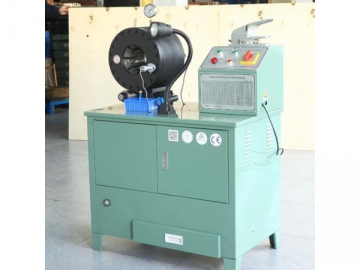

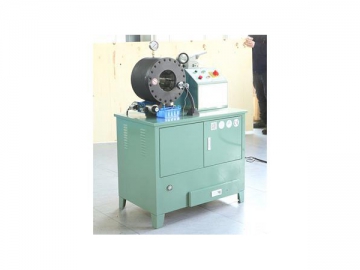

Automatic hose production crimper

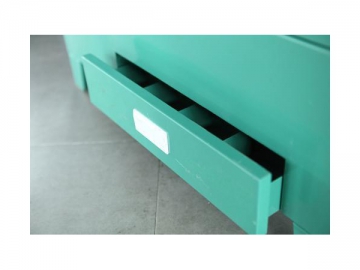

The cabinet can operate on the ground, following an ergonomic design. There is no need for an extra worktable, and the crimping operation is convenient. There is a special drawer for dies in the cabinet, which saves space and provides convenience for collecting dies for different applications.
Material

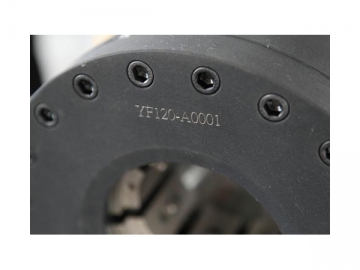

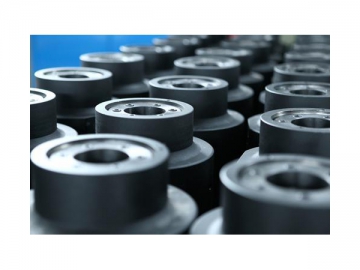

The oil cylinder cover, oil tank and piston rod are made of 40 chromium, with a surface hardness of HRC26-30 and an operation layer hardness of HRC59-63. The harden layer is 2mm thick.
Die connection

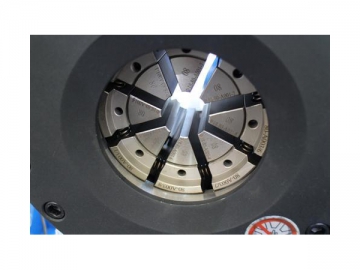

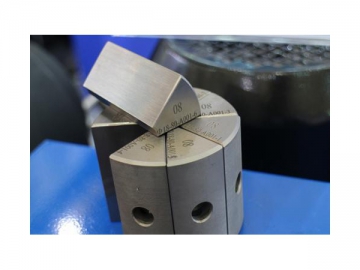

Our crimping dies are connected through magnetism, which makes it convenient for assembly and disassembly and allowing automatic positioning, and thus the crimping is neat and nice.
