25mm High Performance linear Stages

: http://optical-equipment.com/1-3-1-2-2-high-performance-aluminum-linear-stages.html

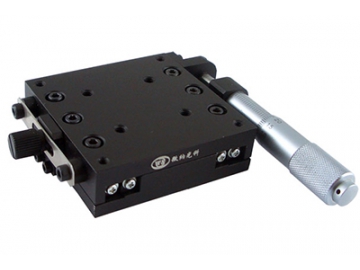

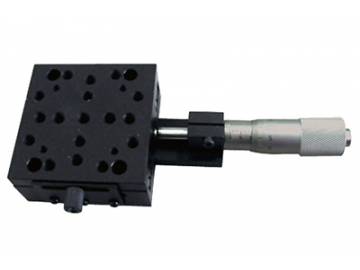

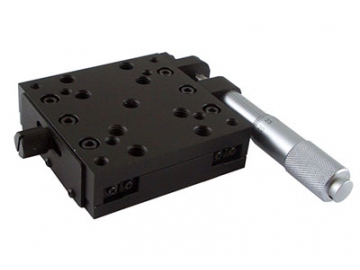

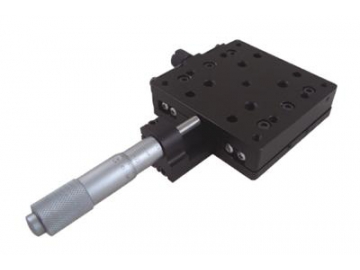

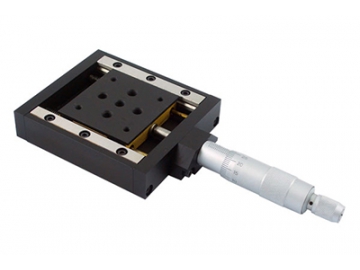

Here are the 25mm high performance linear stages, made of duralumin, blackened by anodic oxidation. 8 models for you to choose from: WN107TM ~WN113TM、WN200TM. Micrometer head can be placed on one side or on the center of the stage.

Features

Adopting crossed roller guide, the duralumin stage has a higher load capacity.
With high precision base and table, the linear stage has a high accuracy of straightness, yawing, pitching and parallelism.
The high precision small resolution micrometer head ensures the displacement to be adjusted at the nanometer level.
Use spring reset device to eliminate axial clearance.

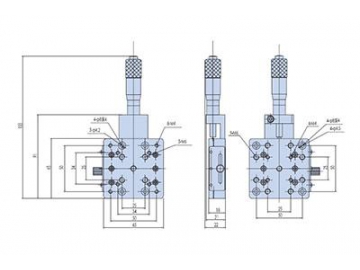

The mounting holes are distributed on the base and table in standard distance, which makes the stage easier to be installed and combined.
The linear stage can be combined with other series of stages to form multi-axis positioning stage.

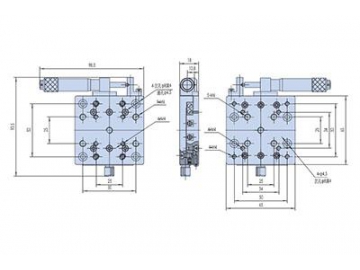

WN107TM

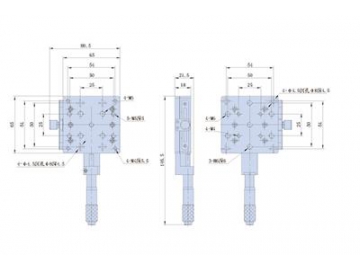

WN108TM

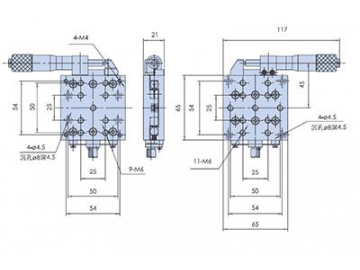

WN109TM

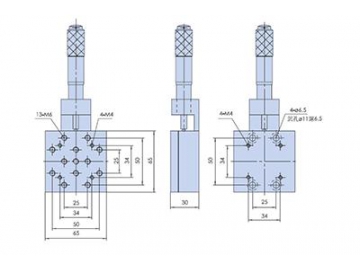

WN110TM

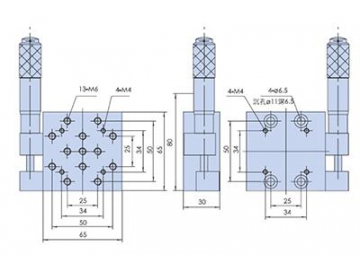

WN111TM

WN112TM

WN113TM

WN200TM

Model	WN108TM	WN109TM	WN110TM	WN111TM	WN112TM	WN113TM	WN200TM
Table size	65mm×65mm	65mm×65mm	65mm×65mm	65mm×65mm	65mm×65mm	53mm×53mm	65mm×65mm
Drive	Micrometer head	Micrometer head	Micrometer head	Micrometer head	Micrometer head	Micrometer head	Micrometer head
Drive position	Lateral drive	Central drive	Lateral drive	Central drive	Lateral drive	Central drive	Central drive
Travel	25mm	25mm	25mm	25mm	25mm	25mm	25mm
Smallest graduation	0.01mm	10μ/0.5μ	10μ/0.5μ	0.01mm	0.01mm	10μ/0.5μ	10μ/0.5μ
Minimal adjustment	0.002	(Reference)2μ/0.1μ	2μ/0.1μ	0.002	0.002	2μ/0.1μ	2μ
Guide type	Crossed roller guide	Crossed roller guide	Crossed roller guide	Crossed roller guide	Crossed roller guide	Crossed roller guide	Crossed roller guide
Load capacity	15kg	10kg	10kg	20kg	20kg	15kg	8kg
Straightness	3μ	2μ	2μ	3μ	3μ	3μ	2μ
Yawing	25″	25″	25″	25″	25″	25″	20″
Pitching	15″	15″	15″	15″	15″	20″	10″
Table parallelism	15μ	15μ	15μ	15μ	15μ	25μ	5μ
Running parallelism	7μ	7μ	7μ	7μ	7μ	10μ	5μ
Weight	0.5kg	0. 4kg	0.4kg	0.5kg	0.5kg	0.52kg	0.15kg
Material	Duralumin	Duralumin	Duralumin	Duralumin	Duralumin	Duralumin	Duralumin
Surface	Blackened by anodic oxidation	Blackened by anodic oxidation	Blackened by anodic oxidation	Blackened by anodic oxidation	Blackened by anodic oxidation	Blackened by anodic oxidation	Blackened by anodic oxidation
Precision	-	3μ/1.5μ	3μ/1.5μ	-	-	3μ/1.5μ	3μ/1.5μ
