50mm High Performance linear Stages

: http://optical-equipment.com/1-3-1-2-3-high-performance-aluminum-linear-stages.html

Here are 50mm high performance linear stages, made from duralumin, blackened by anodic oxidation.
3 models for you to choose from: WN115TM, WN116TM, WN200TM50M. Micrometer head can be placed on one side or on the center of the stage.

Features

Adopting imported high precision cross roller guide, the stainless steel linear stage has higher load capacity.
With high precision base and table, the linear stage keeps good straightness, yawing, pitching and parallelism.
The high precision small resolution micrometer head ensures the displacement to be adjusted at the nanometer level.
Use spring reset device to eliminate axial clearance.
The mounting holes are distributed on the base and table in standard distance, which makes the stage easier to be installed and combined.
Grating scale can be added to display small linear displacement.

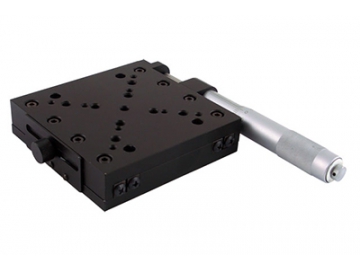

WN115TM50M

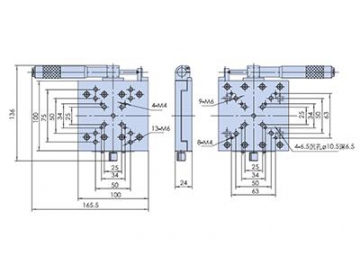

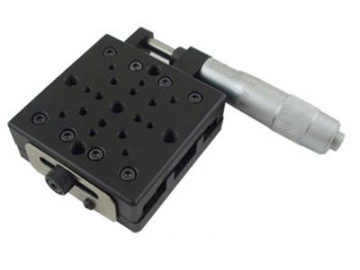

WN116TM50M

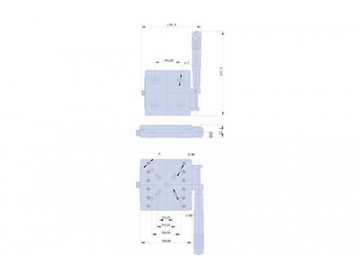

WN200TM50M

Model	WN115TM50M	WN116TM50M	WN200TM50M
Table size	100mm×100mm	100mm×100mm	90mm×90mm
Drive	Micrometer head	Micrometer head	Micrometer head
Drive position	Central drive	Lateral drive	Central drive
Travel	50mm	50mm	50mm
Smallest graduation	0.01mm	0.01mm	10μ/0.5μ
Minimal adjustment	0.002mm	0.002mm	2μ
Guide type	Crossed roller guide	Crossed roller guide	Crossed roller guide
Load capacity	40kg	40kg	8kg
Straightness	5μ	5μ	2μ
Yawing	25″	25″	20″
Pitching	15″	15″	10″
Table parallelism	10μ	10μ	5μ
Running parallelism	15μ	15μ	5μ
Weight	1.1kg	1.1kg	0.45kg
Material	Duralumin	Duralumin	Duralumin
Surface	Blackened by anodic oxidation	Blackened by anodic oxidation	Blackened by anodic oxidation
