13mm High Performance linear Stages
Here are 13mm high performance linear stages. 6 models for you to choose from: WN101TM、WN102TM、WN104TM、WN105TM、WN106TM.
Features- The manual linear stage features with processed duralumin construction, and the surface is treated by black anodizing.
- Adopting imported high precision cross roller guide, the duralumin stage has higher precision, higher load capacity and longer service life.
- With high precision base and table, the linear stage keeps good straightness, yawing, pitching and parallelism.
- The high precision small resolution micrometer head ensures the displacement to be adjusted at the nanometer level.
- Use spring reset device to eliminate axial clearance.
- The mounting holes are distributed on the base and table in standard distance, which makes the stage easier to be installed and combined.
- The linear stage can be combined with other series of linear stages to form multi-axis positioning stage.
- Grating scale can be added to display small linear displacement.

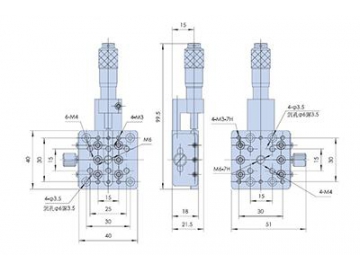

WN101TM

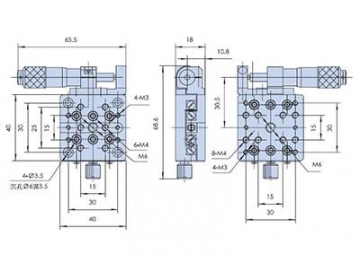

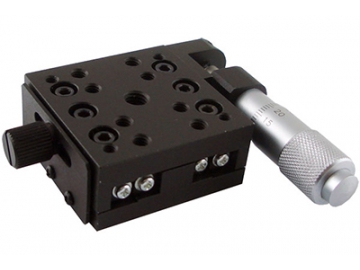

WN102TM

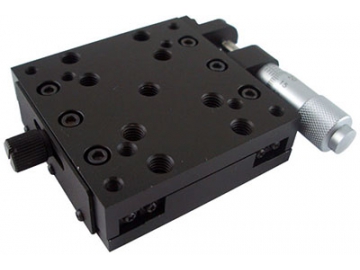

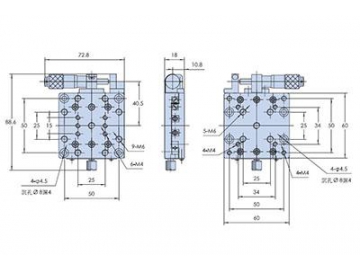

WN104TM

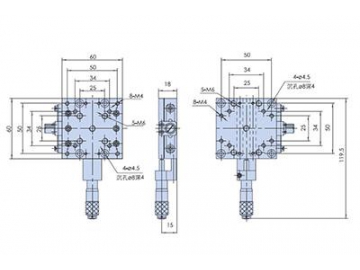

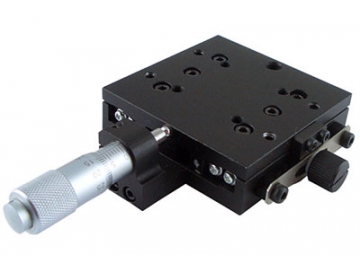

WN105TM

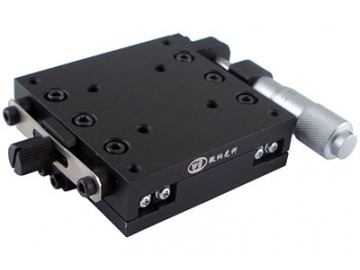

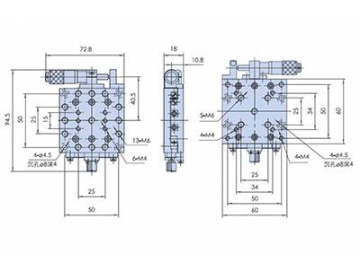

WN106TM
| Model | WN101TM13M | WN102TM13M | WN103TM13M | WN104TM13M | WN105TM13M | WN106TM13M |
| Table size | 40mm×40mm | 40mm×40mm | 60mm×60mm | 60mm×60mm | 60mm×60mm | 60mm×60mm |
| Drive | Micrometer head | Micrometer head | Micrometer head | Micrometer head | Micrometer head | Micrometer head |
| Drive position | Central drive | Lateral drive | Central drive | Lateral drive | Central drive | Lateral drive |
| Travel | 13mm | 13mm | 13mm | 13mm | 13mm | 13mm |
| Smallest graduation | 10μ/0.5μ | 10μ/0.5μ | 10μ/0.5μ | 10μ/0.5μ | 10μ/0.5μ | 10μ/0.5μ |
| Precision | 3μ/1.5μ | 3μ/1.5μ | 3μ/1.5μ | 3μ/1.5μ | 3μ/1.5μ | 3μ/1.5μ |
| Minimal adjustment | 2μ/0.1μ | 2μ/0.1μ | 2μ/0.1μ | 2μ/0.1μ | 2μ/0.1μ | 2μ/0.1μ |
| Guide type | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide | Crossed roller guide |
| Load capacity | 8kg | 8kg | 10kg | 10kg | 10kg | 10kg |
| Straightness | 2μ | 2μ | 2μ | 2μ | 2μ | 2μ |
| Yawing | 25″ | 25″ | 25″ | 25″ | 25″ | 25″ |
| Pitching | 15″ | 15″ | 15″ | 15″ | 15″ | 15″ |
| Table parallelism | 15μ | 15μ | 15μ | 15μ | 15μ | 15μ |
| Running parallelism | 7μ | 7μ | 7μ | 7μ | 7μ | 7μ |
| Weight | 0.24kg | 0.24kg | 0.4kg | 0.4kg | 0.4kg | 0.4kg |
| Material | Duralumin | Duralumin | Duralumin | Duralumin | Duralumin | Duralumin |
| Surface | Blackened by anodic oxidation | Blackened by anodic oxidation | Blackened by anodic oxidation | Blackened by anodic oxidation | Blackened by anodic oxidation | Blackened by anodic oxidation |
