Aluminum Oxide Flanged Flap Wheels Manufacturer

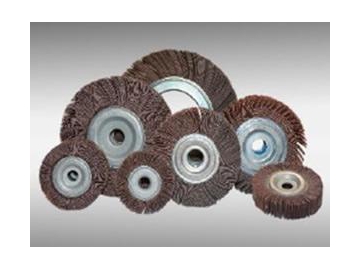

Aluminum Oxide Flanged Flap Wheels

: http://indus-abrasives.com/1-3-1-aluminum-oxide-flanged-flap-wheels.html

Joysun Alumina flanged flap wheels are manufactured with high quality flexible X weight and J weight poly-cotton cloth bonded with aluminum oxide grains.

The long lasting abrasive flaps can perform a uniform grinding, sanding and finishing operations producing high quality results. The flap wheels are perfectly balanced operating at exceptionally high speed while simultaneously delivering consistent finish and uniform cutting rates. In addition, they are suitable for fast grinding for stock removal all the way to fine finishing applications. The wheels are suited for processing all ferrous and non-ferrous metals, brass, aluminum, plastic, fiberglass, wood and glass.

JAC-K366GF Aluminum Oxide Flanged Flap Wheels

Availability

Product Code	JAC-K366GF	JAC-K367RF	JAC-K368KF	JAC-K369LF
Abrasive Grains	Refined Alumina Oxide	Refined Alumina Oxide	Refined Alumina Oxide	Refined Alumina Oxide
Backing Cloth Type	X-Flex cotton	X-Flex cotton	X-Flex cotton	X-Flex cotton
Flap Fitting Hardness	Hard/Medium/Soft	Hard/Medium/Soft	Hard/Medium/Soft	Hard/Medium/Soft
Fasten Type Of Steel Flange	U Type Slot	U Type Slot	U Type Slot	U Type Slot

BRITSH SIZE	METRIC SIZE	OPT	MAX	STD	GRIT	PART #	PART #	PART #	PART #
( D x W x H )	( D x W x H )	RPM	RPM	PACK	GRIT	PART #	PART #	PART #	PART #
3-1/2" x 1" x 5/8"	90 x 25 x 16 mm	5,200	12,000	10	40	30006	30007	30008	30009
					50	30019	30010	30011	30012
					60	30022	30023	30024	30025
					80	30035	30036	30037	30038
					100	30048	30049	30040	30041
					120	30051	30052	30053	30054
					150	30064	30065	30066	30067
					180	30077	30078	30079	30070
					240	30080	30081	30082	30083
					320	30093	30094	30095	30096
3-1/2" x 1-1/4" x 5/8"	90 x 30 x 16 mm	5,200	12,000	10	40	30106	30107	30108	30109
					50	30119	30110	30111	30112
					60	30122	30123	30124	30125
					80	30135	30136	30137	30138
					100	30148	30149	30140	30141
					120	30151	30152	30153	30154
					150	30164	30165	30166	30167
					180	30177	30178	30179	30170
					240	30180	30181	30182	30183
					320	30193	30194	30195	30196
