3.2T Boom Truck, SST3.2S3

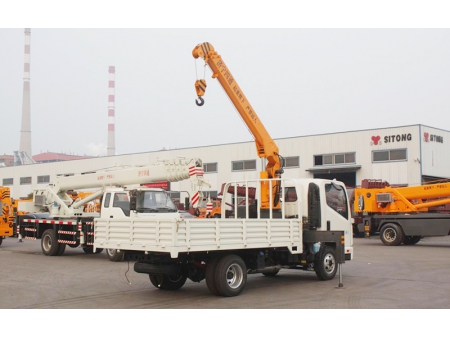

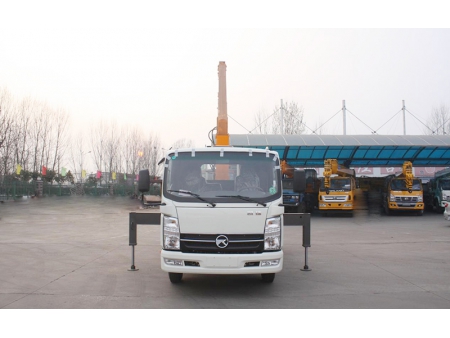

SST3.2S3 boom truck is built to lift and move heavy materials of up to 3.2ton. It adopts Kama truck chassis and Yunnei 95HP engine, the maximum lifting height can reach 8m. The boom truck is configured with a telescopic boom supported by horizontal cable and 360-degree rotating platform, allowing for easy hoisting and placement of materials or cargos on the jobsite. Telescopic boom is made of high-strength manganese steel sheets, the hexagonal cross-section structure ensures better bending and torsional stiffness than that of similar mobile cranes of equivalent capacity.
Specifications
- Max. loading capacity
- 3200kg
- Max. lifting height
- 8m
- Outrigger span
- 3.8m
- Boom
- 3 sections (3m per section)
- Main boom length
- 3.2m-7.2m
- Max. lifting moment
- 6.72t.m
- Boom raising angle
- 0-75°
- Slewing angle
- 270°
- Slewing speed
- 2.5r/min
