Electric sideloader
Electric sideloader
Electric sideloader differs with diesel sideloader in power source. Electric powered sideloader ensures safe and stable movement and comfortable driving experience. Dual motors bring excellent performance.
Details- Maintenance-free AC motor features safety and reliability.

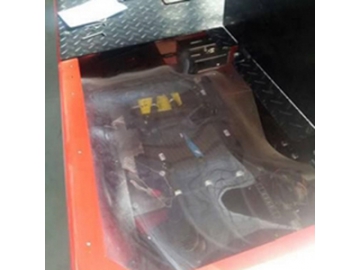

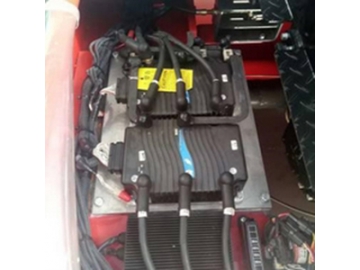

- Waterproof design is applied in controllor.

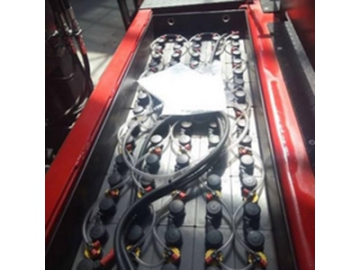

- We use new energy which is energy-saving and environment-friendly, and 500(550)Ah battery can serve the needs for daily use.

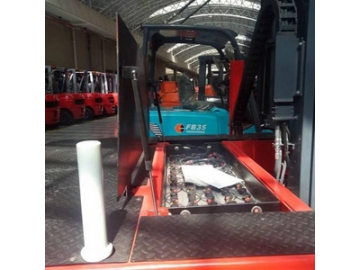

- Battery cover can be opened 90° for easy maintenance and repair.
General | |||||
1 | Model | FBS30 | |||
2 | Power Type(Electric, Diesel, Gasoline, LPG) | Electric | |||
3 | Operator Type (Stand, Sit) | Sit | |||
4 | Load Capacity | kg | 3000 | ||
5 | Load Centre | mm | 500 | ||
Weight | |||||
6 | Service Weight | kg | 7235 | ||
Tyre & chassis | |||||
7 | Tyre(Pneumatic Tyre, Solid Tyre, Green Tyre) | Pneumatic Tyre | |||
8 | Number of wheels front/rear(x = driven wheels) | 2X/2 | |||
9 | Front Tyre | 28×9-15-12PR | |||
10 | Rear Tyre | 28×9-15-12PR | |||
11 | Track width, front | S | mm | 1660 | |
12 | Track width, rear | P | mm | 1660 | |
13 | Wheelbase | L5 | mm | 2680 | |
Dimension | |||||
14 | Lift Height | h3 | mm | 3600 | |
15 | Fork Size | L×W×T | L3×W×T | mm | 1070×125×45 |
16 | Mast Tilt Angle | F/R | α/β | 。 | 4/6 |
17 | Mast Lowered Height | h1 | mm | 2420 | |
18 | Free Lift Height | h2 | mm | 125 | |
19 | Mast Extended Height | h4 | mm | 4255 | |
20 | Width over forks(outside) | R | mm | 1060 | |
21 | Overall Length | L | mm | 4400 | |
22 | Mast Width | B | mm | 2000 | |
23 | Overall Width | B2 | mm | 3100 | |
24 | Overhead Guard Height | h5 | mm | 2520 | |
25 | Platform Height | h7 | mm | 930 | |
26 | Assist Grip Height | mm | 1030 | ||
27 | Min. Turning Radius | Wa | mm | 4400 | |
28 | Max. Inside Turning Radius | Wb | mm | 880 | |
29 | Ground Clearance(Bottom of Mast) | m1 | mm | 140 | |
30 | Ground Clearance(Bottom of Frame) | h6 | mm | 142 | |
31 | Front Overhang | X | mm | 720 | |
32 | Rear Overhang | L4 | mm | 860 | |
Performance | |||||
33 | Max. Travel Speed(Full load/Empty load) | I | km/h | 12/13 | |
34 | Max. Lifting Speed(Full load/Empty load) | mm/s | 270/390 | ||
35 | Max. Lowering Speed(Full load/Empty load) | mm/s | 400/306 | ||
36 | Max. Removal Speed(Full load/Empty load) | 93/92 | |||
37 | Max. Gradeability(Full load) | % | 15 | ||
Power | |||||
38 | Battery (Voltage/Capacity) | V/Ah | 80/500 | ||
39 | Battery Size | L×W×T | mm | 1289×488×755 | |
40 | Engine power | Travel(Drive motor) | Kw | 15 | |
41 | Lifting(Lift motor) | Kw | 12 | ||
42 | Manufacturer of drive control | CURTIS | |||
43 | Type of drive control | AC | |||
Additional Data | |||||
44 | Operating Pressure for Hydraulic System | Mpa | 17.5 |
