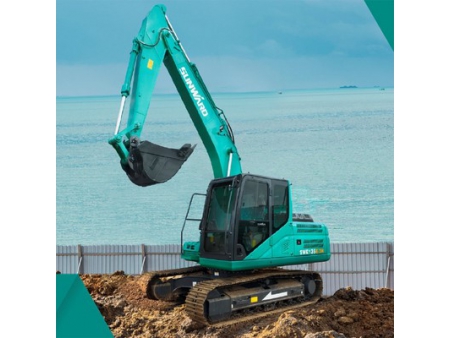

Medium Excavator SWE135E-3H
  • Operating weight: 13.8t
  • Standard bucket capacity: 0.5-0.65m³
  • Rated power: 86kW/2200rpm

Custom-specific engine: utilizing special engine for world's renowned brand excavators, meeting Tier 3 emission standards, delivering sufficient power and high durability;

High-flow main pump: the displacement of the main pump reaches 75ml/r, greatly improving efficiency at light to medium loads on the premise of ensuring strong operational capabilities for heavy loads, resulting in a faster digging speed and higher working efficiency;

Large-diameter main valve: the flow rates up to 180L/min, featuring functions of straight traveling, flow confluence and regeneration; Boom and arm holding valves are available to prevent the boom or arm from falling down;

Technical Specifications
Operating weight kg 13800
Bucket capacity 0.5-0.65
Engine Brand Cummins
Model QSF3.8
Type Four-stroke, supercharged, intercooled, direct injection
Power kW/rpm 86/2200
Max. torque N·m/rpm 470/1320
Displacement L 3.76
Hydraulic system Type of main pump Variable piston pump × 2
Max. flow of main pump L/min 2×142.5
System pressure MPa 31.4
Type of pilot pump Gear pump × 1
Max. flow of pilot pump L/min 20
Pressure of pilot pump MPa 3.9
Performance Slewing speed rpm 12.5
Travel speed km/h 6.0-3.7
Gradeability ° 35
Track width mm 600
Ground pressure kPa 42.5
Tank capacity Fuel tank capacity L 245
Hydraulic oil tank capacity L 150
Working Range & Digging Force
a Max. digging height mm 8640
b Max. dumping height mm 6145
c Max. digging depth mm 5525
d Digging depth (2.44m, horizontal) mm 5320
e Max. vertical digging depth mm 4930
f Max. digging reach mm 8330
g Max. digging reach at ground level mm 8185
h Max. front turning radius mm 2530
Bucket digging force (ISO boost) kN 93
Arm digging force (ISO boost) kN 69

Statement of technical specification: all parameters above are subject to change due to the continuous improvement of the product, please to get the latest info updates.
