D6300 24V 10mm Home Lighting Flexible LED Strip
Features
- This home lighting LED strip has a super-dense LED distribution of 300 LEDs per meter to provide more uniform linear lighting.
- The LED strip has a ultra-slim thickness of 1.2mm to better match with the profiles.
- The self-encapsulated LED strip light can provide 5 optional 2700-6000K white lights.
- We offer 1BIN/2BIN delivery with high color consistency.
- This LED strip uses high quality FPC and high thermal 3M adhesive, and the heat dissipation performance is good.
- The service life is over 36000H.
Basic Parameters
| Size | 5000×10×1.2mm |
| Cutting unit | 6LEDs/20mm |
| Input voltage | 24VDC |
| Input current | 0.9A/1m &4.2A/5m |
| Typical power | 21.6W/m |
| Max. power | 24W/m |
| Bend diameter | ＞60mm |

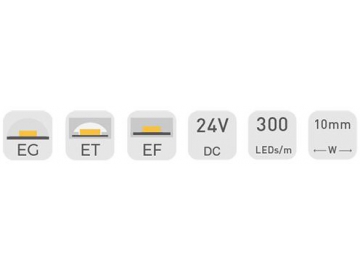

| Ingress protection process | EG/ET/EF |
Photo-electric Parameters
| Color rendering index | >90 |
| Correlated color temperature | 2700K/3000K/4000k/5000k/6000k |
| Lumen (m) | 1510/1620/1720/1780/1720 |
| Luminous efficiency | 70/75/80/82/80 |
| Energy efficiency class | A |
Recommended profiles
- LE2513
