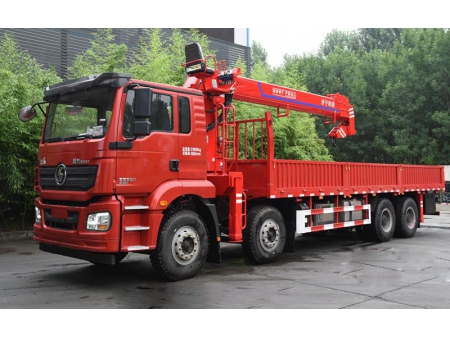

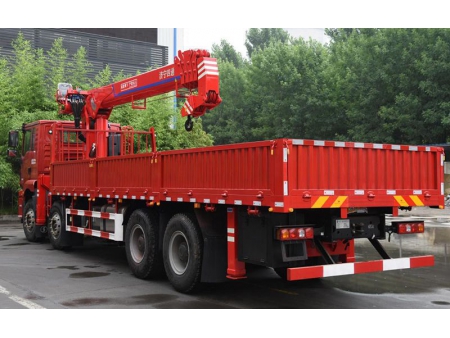

Our SST16S5 16-ton boom truck uses Dongfeng truck chassis and Yuchai 340HP engine. The 5-section telescopic boom features U-shaped cross section and a horizontal supporting cable, the maximum lifting height can reach 22m. The boom truck has a 360-degree rotating platform, allowing for easy hoisting and handling heavy materials in construction sites.


Features
  • Adopting integrated slewing mechanism;
  • Four hydraulic stabilizer legs ensure high stability and versatility for lifting operation;
  • Fitted with load-sensing hydraulic system, providing good adaptability and high working efficiency;
  • The telescopic boom features U-shaped cross section, providing a greater resistance to load-induced deflection;
  • Compact structure, less installation space and superior look;
  • Equipped with over-winding protection system to avoid safety hazards caused by breakage of wire rope;
Specifications
Max. loading capacity
16000kg
Max. lifting height
22m
Outrigger span
7m
Boom
5 sections (5.3m per section)
Main boom length
5.9m-20.5m
Max. lifting moment
30t.m
Boom raising angle
0-75°
Slewing angle
360°
Slewing speed
2.5r/min
