Diesel Sideloader

Diesel Sideloader has more power than electric sideloader, suitable for opearating in more complex terrain.

Details

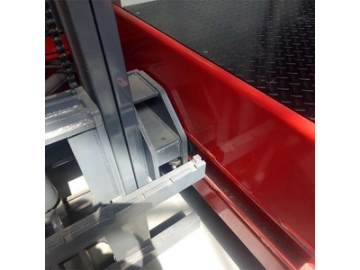

  • Mast roller allows for smooth movement.

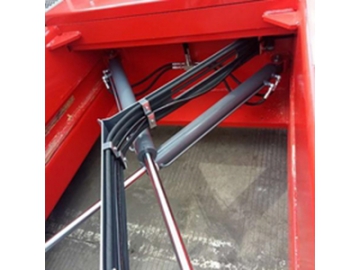

  • Cross double cylinder drive motor makes mast more smmoth and reliable.

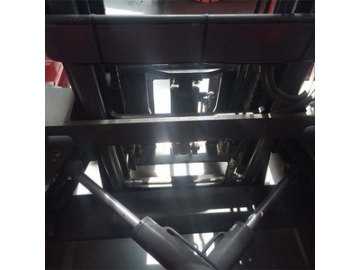

  • Mast frame is durable and reliable.

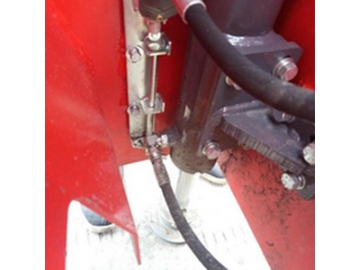

  • Sideloader lock makes operating more safe and reliable.
Technical Parameters
General
1 Model     FDS30-Y2
2 Power Type(Electric, Diesel, Gasoline, LPG)     Diesel
3 Load Capacity   kg 3000
4 Load Centre   mm 500
  Weight
5 Service Weight   kg
  Tyre & Chassis
6 Tyre(Pneumatic Tyre, Solid Tyre, Green Tyre)       Pneumatic Tyre
7 Number of wheels front/rear(x = driven wheels)       2X/2
8 Front Tyre     28×9-15-12PR
9 Rear Tyre     28×9-15-12PR
10 Track width, front S mm 1660
11 Track width, rear P mm 1660
12 Wheelbase L5 mm 2580
Dimension
13 Lift Height h3 mm 3600
14 Fork Size L×W×T L3×W×T mm 1070×125×45
15 Mast Tilt Angle F/R α/β 4/6
16 Mast Lowered Height h1 mm 2420
17 Free Lift Height h2 mm 125
18 Mast Extended Height h4 mm 4255
19 Width over forks(outside) R mm 1060
20 Overall Length L mm 4550
21 Mast Width B mm 2000
22 Overall Width B2 mm 3100
23 Overhead Guard Height h5 mm 2480
24 Platform Height h7 mm 890
25 Assist Grip Height   mm 1030
26 Min. Turning Radius Wa mm 4250
27 Max. Inside Turning Radius Wb mm 850
28 Ground Clearance(Bottom of Mast) m1 mm 140
29 Ground Clearance(Bottom of Frame) h6 mm 190
30 Front Overhang X mm 625
31 Rear Overhang L4 mm 1200
Performance
32 Max. Travel Speed(Full load/Empty load) I km/h 18/19
33 Max. Lifting Speed(Full load/Empty load)   mm/s 440/460
34 Max. Lowering Speed(Full load/Empty load)   mm/s 450/370
35 Max. Removal Speed(Full load/Empty load)     230/240
36 Max. Gradeability(Full load)   % 15
  Engine & Transmission
37 Battery (voltage/capacity)   V/Ah 12/560
38 Engine Model     4TNE98-BQFLC
39 Rated output/rpm   kw/rpm 43/2300
40 Rated torque/rpm   Nm/rpm 177.6-196.3/1700
41 No. of Cylinder     4
42 Bore × Stroke     98×110
43 Displacement   L 3.318
44 Emission Standards     EU III A
45 Fuel Tank Capacity   L 65
46 Transmission Type     Hydraulic Transmission
47 Gears:D/R     1/1
48 Type of Transmission     1/1Powershifting
Additional Data
49 Operating Pressure for Hydraulic System   Mpa 17.5
