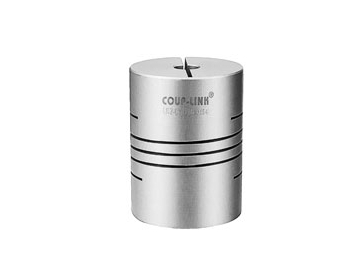

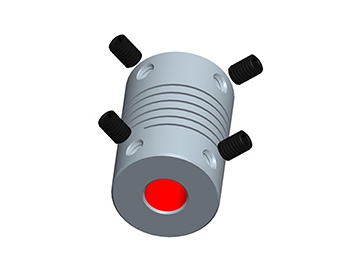

LK1-2 Multi-beam Coupling - Beam Type - Setscrew Type - Spiral
Note: the model with S is the stainless steel type, and the model without S is aluminium alloy type
please let us know the model and the φd1φd2 of product you need.
| Model | φd1φd2 Max. Bore Diameter | φD | L | L1 | M | Wrench Torque ( N.M ) |
| LK1-M15-M SLK1-M15-M | 5 | 15.5 | 21 | 3.1 | M3 | 1.2 |
| LK1-15-M SLK1-15-M | 5 | 15.5 | 23 | 3.1 | M3 | 1.2 |
| LK1-17-M SLK1-17-M | 6 | 17.5 | 23 | 3.1 | M3 | 1.2 |
| LK1-19-M SLK1-19-M | 8 | 19.5 | 24.5 | 3.5 | M4 | 2.5 |
| Model | Rated Torque ( N.m ) | Max.Torque ( N.m ) | Max.Rotational Frequency ( rpm ) | Moment of Inertia ( Kg.m2 ) | Static Torsional Stiffness ( N.m / rad ) | Errors of Eccentricity ( mm ) | Max. Angular ( °) | Max. Axial Misalignment ( mm ) | Mass ( g ) |
| LK1-M15-M | 0.2 | 0.4 | 13000 | 3.0×10-7 | 35 | 0.12 | 2 | ±0.15 | 9.5 |
| LK1-15-M | 0.2 | 0.4 | 13000 | 3.2×10-7 | 36 | 0.12 | 2 | ±0.15 | 9.5 |
| LK1-17-M | 0.3 | 0.6 | 12000 | 6.1×10-7 | 65 | 0.12 | 2 | ±0.25 | 12.5 |
| LK1-19-M | 0.4 | 0.8 | 10000 | 8.5×10-7 | 100 | 0.12 | 2 | ±0.25 | 17.5 |
| SLK1-M15-M | 0.3 | 0.6 | 13000 | 8.7×10-7 | 70 | 0.12 | 2 | ±0.15 | 28 |
| SLK1-15-M | 0.3 | 0.6 | 13000 | 8.9×10-7 | 72 | 0.12 | 2 | ±0.15 | 30 |
| SLK1-17-M | 0.4 | 0.8 | 12000 | 1.5×10-6 | 160 | 0.12 | 2 | ±0.25 | 34 |
| SLK1-19-M | 0.9 | 1.8 | 10000 | 2.0×10-6 | 205 | 0.12 | 2 | ±0.25 | 40 |
