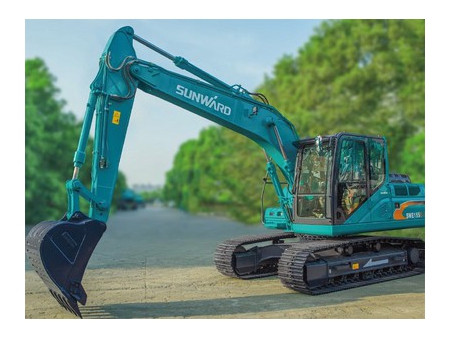

Medium Excavator SWE155E-3H
- Operating weight: 14.88t
- Standard bucket capacity: 0.61m³
- Rated power: 93kW/2200rpm
Medium Excavator, SWE155E-3H
Powerful engine delivers sufficient power and high durability;
One-touch idling function reduces fuel consumption to a minimum;
Greased and sealed track chains are configured as standard, featuring long service life and maintenance-free;
Integral shut-off valve, enabling the operation easier and more reliable;
Technical Specifications
| Specifications | ||
| Operating weight | t | 14.88 |
| Operating weight | m³ | 0.61 |
| Engine | ||
| Brand | Cummins | |
| Model | QSF3.8 | |
| Type | Four-stroke, supercharging, inter-cooling, direct injection | |
| Power | kW/rpm | 93/2200 |
| Maximum torque | N·m/rpm | 500/1200 |
| Displacement | L | 3.76 |
| Hydraulic System | ||
| Type of main pump | Duplex variable displacement piston pump | |
| Maximum flow of main pump | L/min | 2×126.4 |
| System pressure | Mpa | 31.4/34.3 |
| Type of pilot pump | 1 gear pump | |
| Maximum flow of pilot pump | L/min | 20 |
| Pressure of pilot pump | MPa | 3.9 |
| Performance | ||
| Rotating speed | rmp | 11 |
| Traceling speed | km/h | 5.3/3.2 |
| Gradeability | ° | 35 |
| Track width | mm | 600 |
| Ground pressure | kPa | 36.8 |
| Tank Volume | ||
| Fuel tank volume | L | 245 |
| Hydraulic liquid tank volume | L | 150 |
| Working range and digging capacity | |||
| a | Max. digging height | mm | 8700 |
| b | Max. unloading height | mm | 6200 |
| c | Max. digging depth | mm | 5525 |
| d | Digging depth (2.44m horizontal) | mm | 5310 |
| e | Max. vertical digging depth | mm | 5000 |
| f | Max. digging distance | mm | 8370 |
| g | Max. digging reach at ground level | mm | 8225 |
| h | Min. front swing radius | mm | 2645 |
| Digging force of bucket (ISO supercharging) | kN | 100 | |
| Digging force of arm (ISO supercharging) | kN | 76 | |
| Dimensions | |||
| Boom length | mm | 4600 | |
| Arm length | mm | 2500 | |
| A | Overall height | mm | 7825 |
| B | Overall width | mm | 2825 |
| C | Ground clearance of counterweight | mm | 2600 |
| D | Minimum ground clearance | mm | 940 |
| E | Tail swing radius | mm | 410 |
| F | Overall length | mm | 2355 |
| G | Ground contact length of track | mm | 3000 |
| H | Track length | mm | 3765 |
| I | Track gauge | mm | 2000 |
| J | Track width | mm | 2600 |
| K | Width of track link | mm | 600 |
| L | Cab height | mm | 2825 |
| M | Height of machine hood | mm | 2145 |
| N | Width of turntable | mm | 2490 |
Statement of technical specification: all parameters above are subject to change due to the continuous improvement of the product, please to get the latest info updates.
