Rotary Cam Switches Manufacturer Since 1981

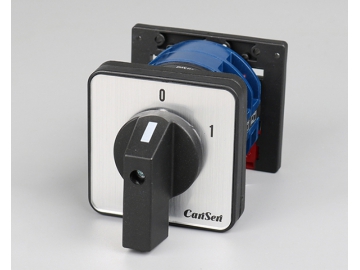

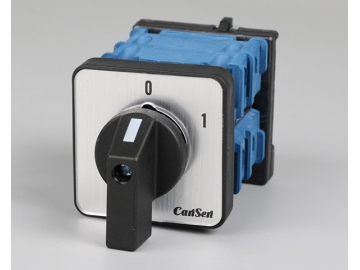

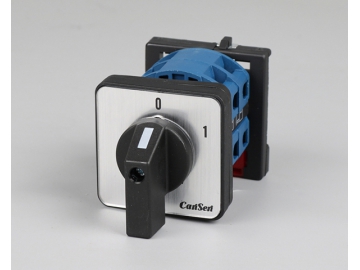

3 pole on-off cam switch rail mounting type is equipped with rear mounting slots, easy for cam switch installed on the rail directly and sliding on the rail.
LW26-20 0-1 3P (61003)
General Information
- Rated working current: 20A
- Panel: 48*48mm, 35mm DIN-rail
- Diagram code: 0-1 3P (61003)
- Color: Blue/black/white
- Handle : I type
- IP rating : IP20
- Layer : 2
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW26-20 | |||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 20 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| Rated working current | ||||
| AC-21A | 20 | 20 | ||
| AC-23A | 15 | 15 | ||
| AC-2 | 15 | 15 | ||
| AC-3 | 11 | 11 | ||
| AC-4 | 3.5 | 3.5 | ||
| AC-15 | 5 | 4 | ||
| DC-13 | 12 | 0.4 | 0.4 | |
| Power | ||||
| AC-23A | 3.7/2.5 | 7.5/3.7 | ||
| AC-2 | 4 | 7.5 | ||
| AC-3 | 3/2.2 | 5.5/3 | ||
| AC-4 | 0.55/0.75 | 1.5/1.5 | ||
LW26-20(X) 0-1 3P (61003)
- Rated working current: 20A
- Panel: 48*48mm, 35mm DIN-rail
- Diagram code: 0-1 3P (61003)
- Color: Blue/black/white
- Handle: I type
- IP rating : IP20
- Layer : 2
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW26-20(X) | |||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 20 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| Rated working current | ||||
| AC-21A | 20 | 20 | ||
| AC-23A | 15 | 15 | ||
| AC-2 | 15 | 15 | ||
| AC-3 | 11 | 11 | ||
| AC-4 | 3.5 | 3.5 | ||
| AC-15 | 5 | 4 | ||
| DC-13 | 12 | 0.4 | 0.4 | |
| Power | ||||
| AC-23A | 3.7/2.5 | 7.5/3.7 | ||
| AC-2 | 4 | 7.5 | ||
| AC-3 | 3/2.2 | 5.5/3 | ||
| AC-4 | 0.55/0.75 | 1.5/1.5 | ||
LW26-25 0-1 3P (61003)
- Rated working current: 25A
- Panel: 48*48mm, 35mm DIN-rail
- Diagram code: 0-1 3P (61003)
- Color : Blue/black/white
- Handle : I type
- IP rating : IP20
- Layer: 2
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW26-25 | |||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 25 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| Rated working current | ||||
| AC-21A | 25 | 25 | ||
| AC-23A | 22 | 22 | ||
| AC-2 | 22 | 22 | ||
| AC-3 | 15 | 15 | ||
| AC-4 | 6.5 | 6.5 | ||
| AC-15 | 8 | 5 | ||
| DC-13 | 20 | 0.5 | 0.5 | |
| Power | ||||
| AC-23A | 5.5/3 | 11/5.5 | ||
| AC-2 | 5.5 | 11 | ||
| AC-3 | 4/3 | 7.5/3.7 | ||
| AC-4 | 1.5/1.1 | 3/2.2 | ||
LW26-32 0-1 3P (61003)
- Rated working current: 32A
- Panel: 64*64mm, 35mm DIN-rail
- Diagram code: 0-1 3P (61003)
- Color : Blue/black/white
- Handle : I type
- IP rating : IP20
- Layer: 2
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW26-32 | |
| Rated insulation voltage | 660/690 | |
| Rated thermal current | 32 | |
| Rated working voltage | 240 | 440 |
| Rated working current | ||
| AC-21A | 32 | 32 |
| AC-23A | 30 | 30 |
| AC-2 | 30 | 30 |
| AC-3 | 22 | 22 |
| AC-4 | 11 | 11 |
| AC-15 | 14 | 6 |
| Power | ||
| AC-23A | 7.5/4 | 15/7.5 |
| AC-2 | 7.5 | 15 |
| AC-3 | 5.5/4 | 11/5.5 |
| AC-4 | 2.7/1.5 | 5.5/3 |
LW26-32F 0-1 3P (61003)
General Information
- Rated working current: 32A
- Panel: 48*48mm, 35mm DIN-rail
- Diagram code: 0-1 3P (61003)
- Color : Blue/black/white
- Handle : I type
- IP rating : IP20
- Layer: 2
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW26-32(F) | |
| Rated insulation voltage | 660/690 | |
| Rated thermal current | 32 | |
| Rated working voltage | 240 | 440 |
| Rated working current | ||
| AC-21A | 32 | 32 |
| AC-23A | 30 | 30 |
| AC-2 | 30 | 30 |
| AC-3 | 22 | 22 |
| AC-4 | 11 | 11 |
| AC-15 | 14 | 6 |
| Power | ||
| AC-23A | 7.5/4 | 15/7.5 |
| AC-2 | 7.5 | 15 |
| AC-3 | 5.5/4 | 11/5.5 |
| AC-4 | 2.7/1.5 | 5.5/3 |
LW26-63 0-1 3P (61003)
General Information
- Rated working current: 63A
- Panel: 64*64mm, 35mm DIN-rail
- Diagram code: 0-1 3P (61003)
- Color : Blue/black/white
- Handle : I type
- IP rating : IP20
- Layer: 2
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW26-63 | |
| Rated insulation voltage | 660/690 | |
| Rated thermal current | 63 | |
| Rated working voltage | 240 | 440 |
| Rated working current | ||
| AC-21A | 63 | 63 |
| AC-23A | 57 | 57 |
| AC-2 | 57 | 57 |
| AC-3 | 36 | 36 |
| AC-4 | 15 | 15 |
| Power | ||
| AC-23A | 15/10 | 30/18.5 |
| AC-2 | 18.5 | 30 |
| AC-3 | 11/6 | 18.5/11 |
| AC-4 | 5.5/2.4 | 7.5/4 |
LW30-20 0-1 3P (61199)
General Information
- Rated working current: 20A
- Panel: 45*42, 35mm DIN rail
- Diagram code: 0-1 3P (61003)
- Color : Blue/black/white
- Handle : Push Padlock
- IP rating : IP20
- Layer: 2
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW30-20 | |
| Rated thermal current | 20 | |
| Rated working voltage | 240 | 440 |
| Rated working current | ||
| AC-21A | 20/- | 20/- |
| AC-22A | 20/- | 20/- |
| AC-23A | 15/4 | 15/7.5 |
| AC-3 | 11.7/3 | 11.7/5.5 |
LW30-25 0-1 3P (61199)
General Information
- Rated working current: 25A
- Panel: 45*42, 35mm DIN rail
- Diagram code: 0-1 3P (61003)
- Color : Blue/black/white
- Handle : Push Padlock
- IP rating : IP20
- Layer: 2
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW30-25 | |
| Rated thermal current | 25 | |
| Rated working voltage | 240 | 440 |
| Rated working current | ||
| AC-21A | 25/- | 25/- |
| AC-22A | 20/- | 20/- |
| AC-23A | 15/4 | 15/7.5 |
| AC-3 | 11.7/3 | 11.7/5.5 |
LW30-32 0-1 3P (61199)
General Information
- Rated working current: 32A
- Panel: 45*42, 35mm DIN rail
- Diagram code: 0-1 3P (61003)
- Color : Blue/black/white
- Handle : Push Padlock
- IP rating : IP20
- Layer: 2
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW30-32 | |
| Rated thermal current | 32 | |
| Rated working voltage | 240 | 440 |
| Rated working current | ||
| AC-21A | 32/- | 32/- |
| AC-22A | 32/- | 32/- |
| AC-23A | 22/5.5 | 22/11 |
| AC-3 | 15/4 | 15/7.5 |
