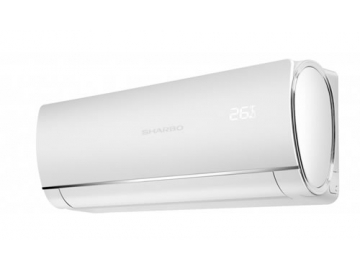

Wall Mounted Split System AirConditioner (Item AUS-18C53FB, 18,000 BTU, Air Cooler, R22 Refrigerant)
The cooling capacity of this air conditioner is 18,000BTU, which means that this split system air conditioner is most suitable for the refrigeration of rooms up to 430 sq. ft. (40m²) such as master bedroom, office or small meeting room, etc.
To improve the cooling effect, SHARBO air conditioners adopt the high frequency start technique so that they can make the room cool quickly.
Model
Compressor
Indoor unit
Outdoor unit
Connecting pipe
Additional information
AUS-18C53FB*-760(17)
Refrigeration parameter| Capacity | 18000BTU/h |
| 4800W | |
| Capacity tolerance | 92% |
| Input | 1850W |
| Rated current | 8.67A |
| EER | 2.59 |
| Model | QX-F305F050g |
| Type | Rotary |
| Brand | GREE |
| Capacity | 5150W |
| Input | 1660W |
| Rated current(RLA) | 7.7A |
| Locked rotor amp(LRA) | 41A |
| Thermal protector | INTERNAL |
| Capacitor | 50μF |
| Refrigerant oil | 750ml |
| Indoor fan motor | Model | RPG-25H-1 / YYK25-4 |
| Brand | TONGDELI / DONGFANG | |
| Output power | 25W | |
| Capacitor | 1.5μF | |
| Speed (Hi/Mi/Lo) | 1300/1200/1100/1000rpm | |
| Indoor coil | a. Number of row | 2 |
| b. Tube pitch(a)x row pitch(b) | 21×12.7mm | |
| c. Fin spacing | 1.5mm | |
| d. Fin material | Hydrop hilic | |
| e. Tube outside dia.and material | φ7mm，inner Grooved | |
| f. Coil length x height x width | 652*315*25.4mm | |
| Indoor air flow (Hi/Mi/Lo) | 700/600/550m³/h | |
| Rated input power(cooling/heating) | 50W | |
| Rated current (cooling/heating) | 0.25A | |
| Moisture removal | 2L | |
| Noise level(Hi/Mi/Lo) | 45/42/39dB | |
| Unit dimension (W*H*D) | 850×190×292cm | |
| Packing (W*H*D) | 930×250×367cm | |
| Net weight | 9kg | |
| Gross weight | 11kg | |
| Outdoor fan motor | Model | YDK25-6S / YDK25-6 |
| Brand | KAIBANG / DONGFANG | |
| Output power | 25W | |
| Capacitor | 2.5μF | |
| Speed | 860±30rpm | |
| Outdoor coil | a. Number of row | 1 |
| b. Tube pitch(a)x row pitch(b) | 25×21.65mm | |
| c. Fin spacing | 1.5mm | |
| d. Fin material | Hydrop hilic | |
| e. Tube outside dia.and material | φ9.52mm，Inner Grooved | |
| f. Coil length x height x width | 775*500*21.65mm | |
| Noise level | 55dB | |
| Unit dimension (W*H*D) | 760×256×551cm | |
| Packing (W*H*D) | 870×365×623cm | |
| Net weight | 37.5kg | |
| Gross weight | 40.5kg | |
| Refrigerant type | R22 | |
| Refrigerant charge | 1150g | |
| Design pressure | 2.7pa | |
| Liquid side | Φ6mm |
| Gas side | Φ12mm |
| Max. refrigerant pipe length | 10m |
| Max. difference in level | 5m |
| Operation temperature range | 16℃-43℃ |
| Ambient temperature range | 16℃-48℃ |
| Application area | 20～40m² |
| Max. input consumption | 2600W |
| Max. current | 12.44A |
| Power supply | 1Ph / 220-240V/50Hz |
| Qty'per 20'& 40'&40HQ | 104/217/245 |
