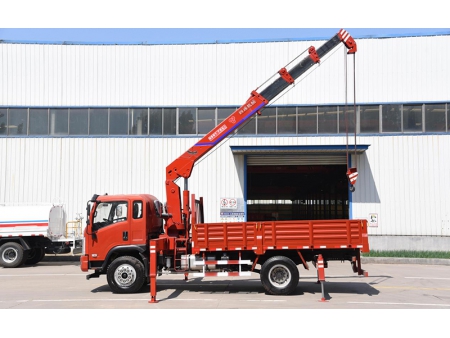

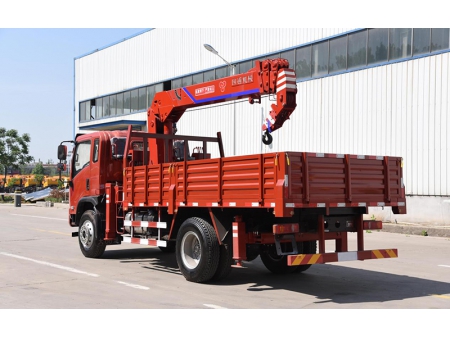

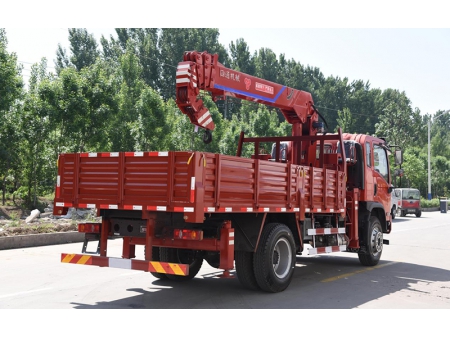

6.3T Boom Truck, SST6.3S4
Our SST6.3S4 6.3-ton boom truck utilizes Dongfeng truck chassis and Yuchai 160HP engine, the maximum lifting height can reach 14.6m. The boom truck is configured with a telescopic boom having horizontal supporting cable and 360-degree rotating platform, allowing for easy hoisting and placement of materials or cargos on the jobsite.
Features
- Adopting integrated slewing mechanism;
- Four hydraulic stabilizer legs ensure high stability and versatility for lifting operation;
- Fitted with load-sensing hydraulic system, providing good adaptability and high working efficiency;
- The telescopic boom is characterized by a pentagonal cross section, providing a greater resistance to load-induced deflection;
- Equipped with over-winding protection system to avoid safety hazards caused by breakage of wire rope;
- Max. loading capacity
- 6.3t
- Max. lifting height
- 14.6m
- Outrigger span
- 5.3m
- Boom
- 4 sections (3.8m per section)
- Main boom length
- 3.98m-12.9m
- Max. lifting moment
- 15.75t.m
- Boom raising angle
- 0-80°
- Slewing angle
- 360°
- Slewing speed
- 2.5r/min
