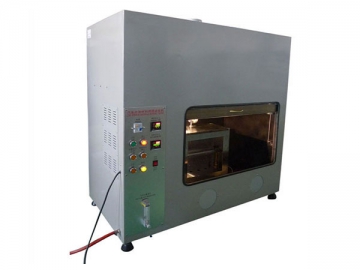

Flame Resistance Tester for Car Interiors HVF-6
Standard
ISO3795, ASTM D5132.
Application
It is suitable for evaluating the horizontal flammability characteristics of the interior decoration material of cars (including limousines, multi-purpose passenger cars, trucks and coaches).
Test Sample
The interior decoration material of car (including limousines, multi-purpose passenger cars, trucks and coaches).
Feature
This tester is composed of a control box, combustion box body, combustion lamp, solenoid valve, high pressure igniter, thermometer, signal control line and upper and lower bracket of test specimen. The control box and combustion box are made of stainless steel.
| Model | HVF-6 | HVF-6A | |
| Working voltage | 220V/50Hz | ||
| Control operation mode | Electrical control, button operation | ||
| Blast burner | Nozzle jet inner diameter Ø9.5±0.3mm effective length 100mm±10mm | ||
| Gas flow and gas category | Liquefied gas, natural gas and gas can also be used | ||

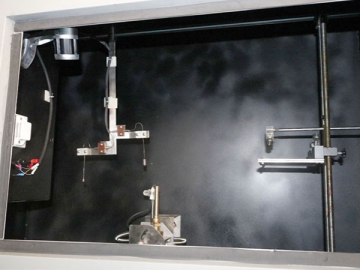

| Combustion chamber | Made of stainless steel, with heat resistant glass observation window, around and at the bottom with the ventilation hole , L×W×H=385mm×204mm×360mm | ||
| Combustion / self extinguishing time | 0-9999X0.1S | ||
| Distance between top of the blast burner to the test sample | 19±1mm | ||
| Flame height | 38mm , Solenoid valve adjustment | 38mm , flow meter adjustment | |
| Metal comb | The length is at least 110mm, have 7~8 smooth crenations of every 25mm | ||
| Test chamber temperature | 0-150°C, Thermometer display | ||

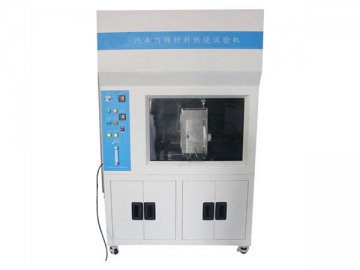

| Equipment structure and dimensions | Control cabinet and combustion chamber | With ventilation cabinet by electric control and the combustion chamber, black matt background, built-in lighting, with the exhaust fan, dimension:1150*600*1200mm, 180kg | |
