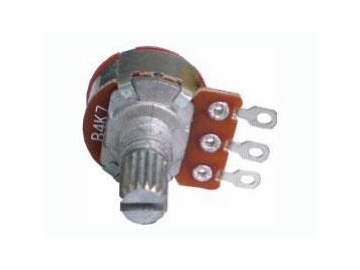

16mm Size Metal Shaft Rotary Potentiometer, WH148-1A-10-T

16mm Size Metal Shaft Rotary Potentiometer, WH148-1A-10-T
16mm Size Metal Shaft Rotary Potentiometer, WH148-1A-10-T
: http://gyfasteners.com/4-6-rotary-shaft.html

Part Number

WH148-1A-10-T

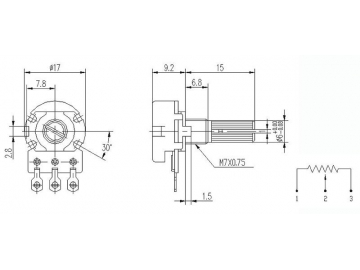

Dimensions
Parameters
Diameters 16mm
Total rotational angle 300°±10°
Rotational torque 20~200gf.cm
Stopper strength ≥4kgf
Number of resistor elements single-unit
Total resistance 500Ω-1MΩ
Resistance tolerance ±10%
Shaft Types knurled shaft
Element carbon film
Rated power ≤0.05W
Voltage proof 500V AC for 1 minute
Operating life ≥10000cycles
Dimensions
Related products

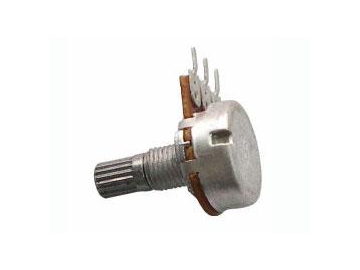

16mm Size Metal Shaft Rotary Potentiometer, WH148-1A-2-T
16mm Size Metal Shaft Rotary Potentiometer, WH148-1A-2-T

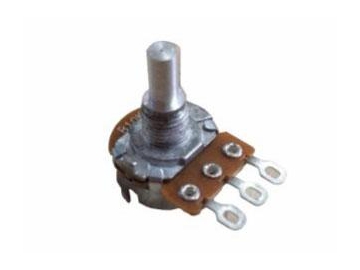

16mm Size Metal Shaft Rotary Potentiometer, WH148-1A-10-HR
16mm Size Metal Shaft Rotary Potentiometer, WH148-1A-10-HR
16mm Size Metal Shaft Rotary Potentiometer, WH148-1A-2
16mm Size Metal Shaft Rotary Potentiometer, WH148-1A-2

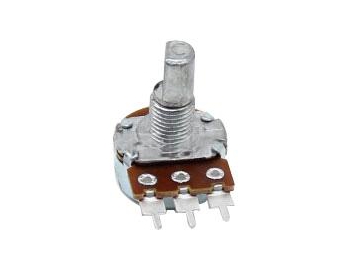

16mm Size Metal Shaft Rotary Potentiometer, WH148-1A-2-F
