One-Axis Tilt Platforms

: http://optical-equipment.com/1-3-5-1-one-axis-tilt-platforms.html

The one-axis platform provides one-dimensional pitching adjustment. 2 models to choose from, can control the tilt within a deviation within ±3° or ±4°. The mounting plate is made of aluminum alloy. Maximal load capacity is 4kg and 10kg. With high quality disc formed spring, the platform can be reset stable.

Features

The platform provides one-dimensional pitching adjustment.
The tilt platform is driven by micrometer head. With high quality disc formed spring, the platform can be reset stable.
The mounting holes are distributed on the base and table with standard hole spacing, which makes the platform convenient to combine with other series of products.

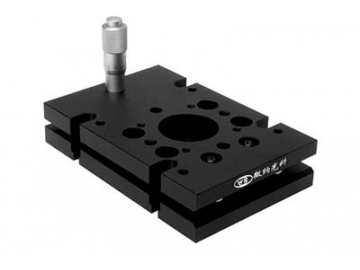

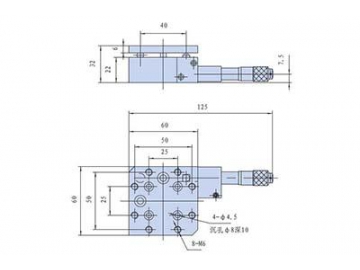

WN04SM4
Able to change the linear movement to pitching adjustment.

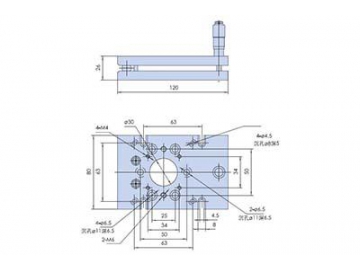

WN01SM3
30mm center diameter allows light transmission.

Model	WN04SM4	Model	WN01SM3


Table size	60mm×60mm	Table size	120mm×80mm
Function	θx one-dimensional pitching adjustment	Function	θx one-dimensional pitching adjustment
Drive	Micrometer linear drive	Drive	Micrometer 1-axis drive
Adjustment range	Pitching ±4°	Adjustment range	±3°
Minimum adjustment	5′	Minimum adjustment	5′
Load capacity	4kg	Load capacity	10kg
Weight	0.34kg	Weight	0.5kg
Material	Duralumin	Material	Duralumin
Surface	Black anodizing	Surface	Black anodizing
