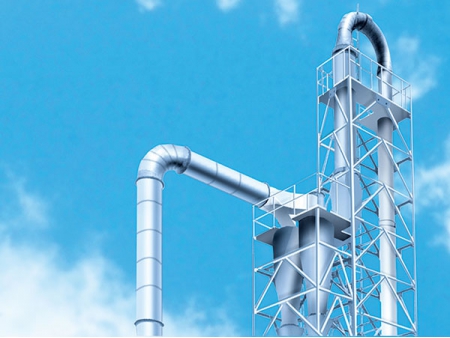

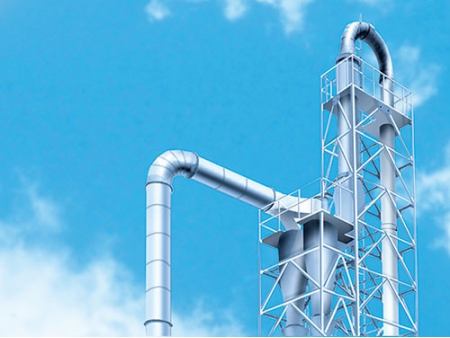

FG Series Hot Air Dryer
The FG series hot air dryer uses a cycling flow of hot air under negative pressure to dry material. The drying equipment allows for complete adjustment of the air speed and temperature, making it extremely versatile.
Applications
The air dryer is widely used for drying granules and powders for food, chemical, pharmaceutical and construction materials industries. Some of the common products processed by the hot air dryer include starch, glucose, sugar, feed, coal powder and many other products.
| Model | Drying capacity (kg/h) | Power(kw) | Floor space/m2 | Thermal efficiency |
| FG0.25 | 113 | 11 | 3.5*2.5 | >60 |
| FG0.5 | 225 | 18.5 | 7*5 | >60 |
| FG0.9 | 450 | 30 | 7*6.5 | >60 |
| FG1.5 | 675 | 50 | 8*7 | >60 |
| FG2.0 | 900 | 75 | 11*7 | >60 |
| FG2.5 | 1125 | 90 | 12*8 | >60 |
| FG3.0 | 1150 | 110 | 14*10 | >60 |
| FG3.5 | 1491 | 110 | 14*10 | >60 |
Machine Principle
First the raw material is dried by mixing through air flow and then the recycled air is heated and the chamber is placed under negative pressure.
