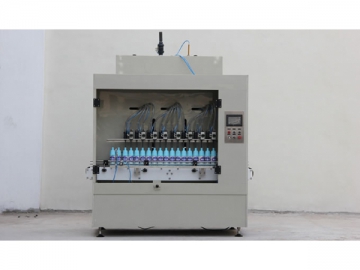

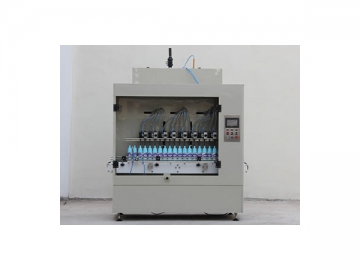

50-1000ml Automatic Filling Machine (for Corrosive Liquid),ZGP-16G

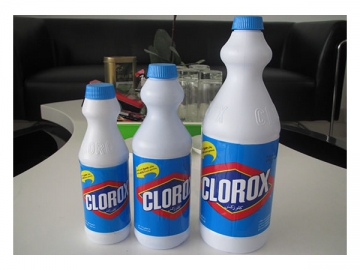

The 50-1000ml automatic liquid filling machine for corrosive liquid bottles containers that are less than 1000ml in volume. With precise and accurate filling, the liquid filling machine processes strong acids and bases such as Harpic, Clorox, and bleach for chemical or cosmetic industries. Made of nonmetallic, anti-corrosion material, the bottle filling machine does not bubble up or overflow.
Main performance parameters:
1. Capacity: ≤5000 bottles/hr (100ml water as medium)
2. Bottle type: Dimensions: Φ33 - 100mm, Height 80 - 280mm
3. Volumes: 50-1000ml
4. Precision: ±1%
5. Air pressure: 0.6MPA
6. Power source: ~220V
7. Power: 1.5KW
8. Material Feeding Connector: DN32 Flange
9. External Dimensions: 2300 x 710 x 2200mm (L x W x H)
10. Weight: about 650Kg
11. Production line height: 900mm±50mm
12. Bottle feeding direction: From left to right
Features
1. Anti-corrosive so can be used with strong acids and bases
2. Easily adjustable between models
3. Imported components from trusted brands for reliability and long service life
4. Easy to clean and low noise
5. Automatic bottle feeding and counting
6. Filling heads can be finely adjusted for accurate filling
7. Made of nonmetallic material to prevent corrosion
8. PLC and touch screen control
| Model | | | | | |
| Dimensions | 2000 x 710 x 2200mm (L x W x H) | 2200 x 710 x 2200mm (L x W x H) | 2300 x 710 x 2200mm (L x W x H) | ||
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity (1L) | 1800B/H | 2000 B/H | 2800 B/H | 3200 B/H | 4500 B/H |
| Power | 1KW | 1 KW | 1KW | 1.5KW | 1.5KW |
| Type of bottle | Diameter : Φ 40mm --Φ 100mm Height : 80mm -- 280mm | ||||
| Filling accuracy | ≤100ml : -1.5ml 100-500ml : -2ml 500-1000ml : -3ml | ||||
| Neck diameter | Φ 18mm | ||||
| Filling range | 50ml--1000ml | ||||
| Air pressure | 0.6Mpa | ||||
| Power supply | 220V, 50HZ | ||||
| No. | Item | Supplier | Brand |
| 1 | Touch screen | Taiwan | WEINVEIW |
| 2 | PLC | Japan | Mitsubishi |
| 3 | Photo sensor for bottles | Japan | OPTEX |
| 4 | Solenoid valve | Taiwan | SHAKO |
| 5 | Level button | USA | JOHNSON CONTROLS |
| 6 | Angle seat valve | Jointed | BURKERT |
| 7 | Other devices | Taiwan | Airtac |
| 8 | Power button | France | Schneider |
| 9 | Button | France | Schneider |
| 10 | Frequency converter | France | Schneider |
| 11 | Bottle-transport motor | China | Huangyan |
| 12 | Speed reducer | China | Jiao xing |
| 13 | Relay | Japan | Omron |
