Non-Woven Interleaf Flanged Flap Wheels Manufacturer

Non-Woven Interleaf Flanged Flap Wheels

: http://indus-abrasives.com/1-3-5-nonwoven-interleaf-flanged-flap-wheels.html

Joysun non-woven Combi-Interleaf flanged flap wheels are manufactured by combining with Alumina Non-woven Scotch Brite Materials and professional grade aluminum oxide abrasive cloth in X and J weight.

These combi interleaf flap wheels feature a flexible structure that provides a softer and more flexible operation. This makes them suitable for de-burring, creating decorative finishes, and rust removal among others. Joysun Non-woven combi interleaf flanged flap wheels are perfect for finishing materials and products made from carbon steel, stainless steel, high temperature resistant alloys and all ferrous and non-ferrous metals.

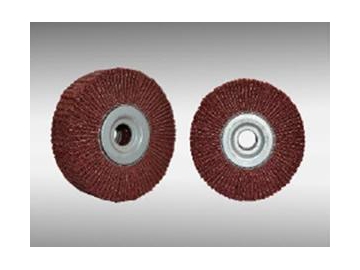

JAC-K727RF Non-Woven Interleaf Flanged Flap Wheels

Availability

Product Code	JAC-K727RF	JAC-K728SF	JAC-K729GF
Abrasive Grains	Refined Alumina Oxide	Refined Alumina Oxide	Refined Alumina Oxide
Backing Cloth Type	X-Flex cotton/Non-woven	X-Flex cotton/Non-woven	X-Flex cotton/Non-woven
Flap Mounted Version	Interleaved	Interleaved	Interleaved
Fasten Type Of Steel Flange	U Type Slot	U Type Slot	U Type Slot

BRITSH SIZE	METRIC SIZE	OPT	MAX	STD	GRIT	PART #	PART #	PART #
( D x W x H )	( D x W x H )	RPM	RPM	PACK	GRIT	PART #	PART #	PART #
3-1/2" x 2" x 3/8"	90 x 50 x 10 mm	5,200	12,000	10	CRS+ 50	72207	72208	72209
					CRS+ 60	72210	72211	72212
					MED+80	72223	72224	72225
					MED+120	72236	72237	72238
					FIN+180	72249	72240	72241
					VFN+240	72252	72253	72254
					VFN+320	72265	72266	72267
4" x 2" x 5/8"	100 x 50 x 16 mm	5,200	12,000	10	CRS+ 50	72278	72279	72270
					CRS+ 60	72281	72282	72283
					MED+80	72294	72295	72296
					MED+120	72307	72308	72309
					FIN+180	72310	72311	72312
					VFN+240	72323	72324	72325
					VFN+320	72336	72337	72338
6" x 1" x 1"	150 x 25 x 25 mm	3,000	6,100	10	CRS+ 50	72349	72340	72341
					CRS+ 60	72352	72353	72354
					MED+80	72365	72366	72367
					MED+120	72378	72379	72370
					FIN+180	72381	72382	72383
					VFN+240	72394	72395	72396
					VFN+320	72407	72408	72409
6" x 2" x 1"	150 x 50 x 25 mm	3,000	6,100	10	CRS+ 50	72410	72411	72412
					CRS+ 60	72423	72424	72425
					MED+80	72436	72437	72438
					MED+120	72449	72440	72441
					FIN+180	72452	72453	72454
					VFN+240	72465	72466	72467
					VFN+320	72478	72479	72470
6" x 3" x 1"	150 x 75 x 25 mm	3,000	6,100	10	CRS+ 50	72481	72482	72483
					CRS+ 60	72494	72495	72496
					MED+80	72507	72508	72509
					MED+120	72610	72611	72612
					FIN+180	72623	72624	72625
					VFN+240	72636	72637	72638
					VFN+320	72649	72640	72641
6-1/2" x 1" x 2-1/8"	165 x 25 x 54 mm	2,700	5,300	10	CRS+ 50	72652	72653	72654
					CRS+ 60	72665	72666	72667
					MED+80	72678	72679	72670
					MED+120	72681	72682	72683
					FIN+180	72694	72695	72696
					VFN+240	72707	72708	72709
					VFN+320	72710	72711	72712
6-1/2" x 2" x 2-1/8"	165 x 50 x 54 mm	2,700	5,300	10	CRS+ 50	72723	72724	72725
					CRS+ 60	72736	72737	72738
					MED+80	72749	72740	72741
					MED+120	72752	72753	72754
					FIN+180	72765	72766	72767
					VFN+240	72778	72779	72770
					VFN+320	72781	72782	72783
8" x 2" x 1"	200 x 50 x 25 mm	2,400	4,500	10	CRS+ 50	72794	72795	72796
					CRS+ 60	72807	72808	72809
					MED+80	72810	72811	72812
					MED+120	72823	72824	72825
					FIN+180	72836	72837	72838
					VFN+240	72849	72840	72841
					VFN+320	72852	72853	72854
8" x 3" x 1"	200 x 50 x 25 mm	2,400	4,500	10	CRS+ 50	72865	72866	72867
					CRS+ 60	72878	72879	72870
					MED+80	72881	72882	72883
					MED+120	72894	72895	72896
					FIN+180	72907	72908	72909
					VFN+240	72910	72911	72912
					VFN+320	72923	72924	72925
12" x 1" x 5"	300 x 25 x125 mm	1,700	3,000	10	CRS+ 50	72936	72937	72938
					CRS+ 60	72949	73040	73041
					MED+80	73052	73053	73054
					MED+120	73065	73066	73067
					FIN+180	73078	73079	73070
					VFN+240	73081	73082	73083
					VFN+320	73094	73095	73096
