ECP Industrial Video Borescope

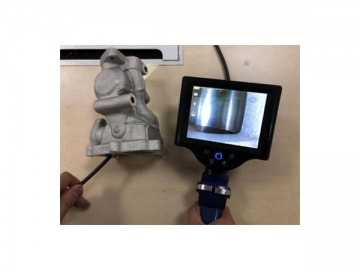

ECP borescopes for casting inspection are designed for inspection and maintenance of casting parts. The lens is either a hard tube or hose that is used to flexibly check casting part interiors. This borescope also assists quality control departments with product QC and QA.

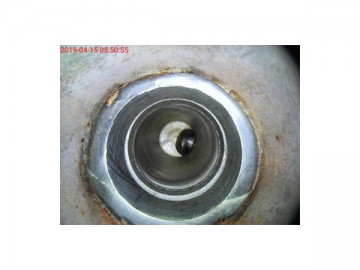

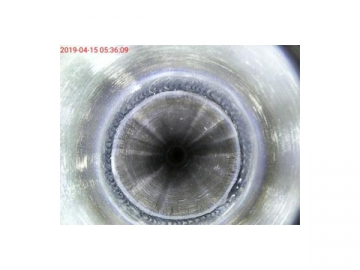

The borescope can detect, analyze and take videos of the casting parts, cavities, welds and threads, then display them through an HD HDMI video output.
| Probe | Pixel | 1 Mega Pixel,480,000 Pixel |
| Diameter | 6.0mm / 3.9mm/3.0mm/2.2mm ; Borescopes or flexible probe | |
| FOV | 90° | |
| View Direction | Farward View/ Farward view+Side view Dual Camera | |
| Probe Length | 1 meters with tungsten mesh; or steel borescope | |
| Articulation | 360°with Mechanical control ; or no Articulation | |
| Input | Support 2 ways probe input; Support picture in picture | |
| System | Displayer | 10.1 Inch Touch Screen LCD (1920*1080); with touch screen |
| Memory | TF Card Support 8G~128G | |
| Output Interface | USB2.0/HDMI out/ Earphone out; support 2 monitors | |
| Power | 110~220V AC | |
| Wireless | WiFi/Bluetooth for Android | |
| Size | 330*148*150 (L*W*H) | |
| Weight | 1.2Kg | |
| Waterproof | Probe: IP67 | |
| Working Temperature | -30～50° |
