We have performed many mold flow analyses during design stage to make sure that the knit lines are concealed from the consumer. We have managed to solve the problem by maintaining proper injection pressure, mold temperature and other parameters.

Here are several successful cases that we have worked on.

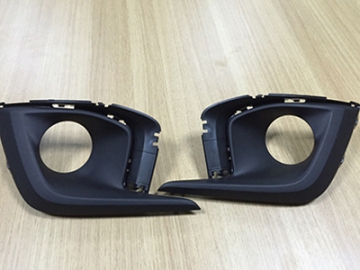

Project:D2UC Country:Mexico

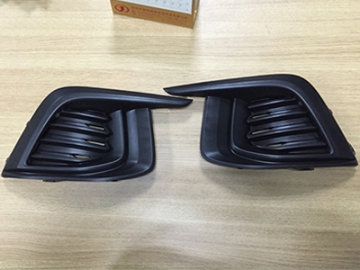

Brand:Chevy Cruze Product:Fog Delete Lamp LH / RH
Material:PP+EPDM-M33 Steel:XPM
Cavity:1+1 Gating solution:2 drop of Syventive hot runner to sub gate
Mold size:1120 * 750 * 960 Product size:263 * 170 * 277
Injection machine:350 T
Project:G1SC Country:Mexico
Brand:Chevy Product:Fog Cover with Hole
Material:TPO Steel:W.1.2738
Cavity:1+1 Gating solution:2 drop of Syventive hot runner to sub gate
Mold size:966 * 672 * 793 Product size:275*254*183
Injection machine:350 T
Project:G1SC Country:Mexico
Brand:Chevy Product:Fog Delete Cover without Hole
Material:TPO Steel:W.1.2738
Cavity:1+1 Gating solution:2 drop of Syventive hot runner to sub gate
Mold size:866 * 672 * 793 Product size:274*255*183
Injection machine:350 T
Project:NBR Country:Mexico

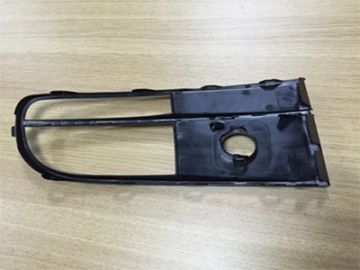

Brand:VW Product:Bezel Heat Blocker
Material:ASA Steel:W.1.2738
Cavity:1 Gating solution:1 drop of Yudo hot runner to sub gate
Mold size:1130 * 650 *810 Product size:275 * 359 * 160
Injection machine:650 T
Project:T1XX Country:Mexico

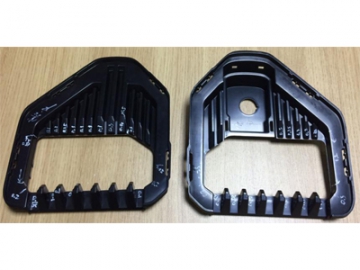

Brand:GM Product:Fog Pocket
Material:LURAN S777K 598F Steel:W.1.2738
Cavity:1+1 Gating solution:1 drop Syventive hot runner to edge gate
Mold size:700 * 672 * 642 Product size:197 * 169 * 115
Injection machine:200 T
