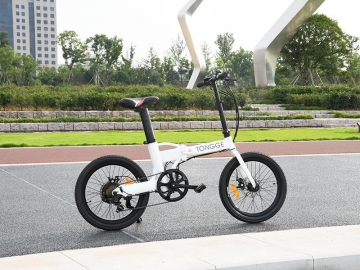

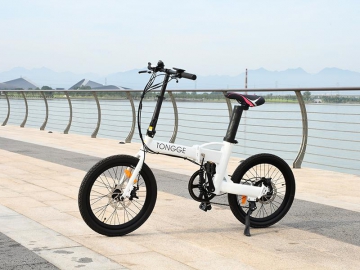

TG-F002 Folding Electric Bike
- Model TG-F002
- Size 20 inches

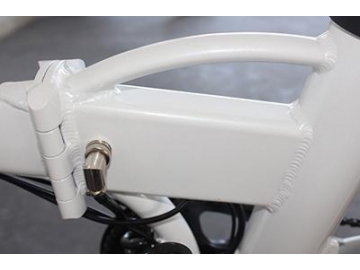

- Frame ALLOY 6061
- Battery 36V 7.8AH
- Motor 250W 8FUN rear hub motor
- Highest speed 32km/h

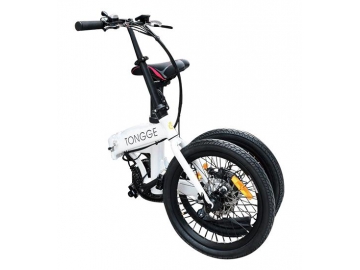

TG-F002 is a city folding electric bike whose folded size is 85cm*52cm*56cm, making it easy to store in small spaces, such as the trunk of a car. The seat-post battery design ensures the battery and seat are combined to give the bike a simple appearance. The bike uses a BAFANG motor to ensure the bike is secure. Customers can choose from black, white, blue, yellow, red or other customized color options.
| Frame | Aluminum alloy |
| Battery | 36V 7.8AH |
| Motor | 250W 8FUN rear hub motor |
| Connect line | Waterproof connector and wire |
| Brake lever | Aluminum alloy brake lever with cut-off motor switch |
| Brake | TEKTRO mechanical disc brake |
| Tire | KENDA 20*2.125 |
| Rim | Anodized rims |
| Handlebar | Aluminum alloy |
| Front fork | Rigid, aluminum alloy front fork |
| Highest speed | 32km/h |
| Riding distance | 50-60KM with power assist system |
| Charge time | 4-6h |
| weight | 19.5kg |
-

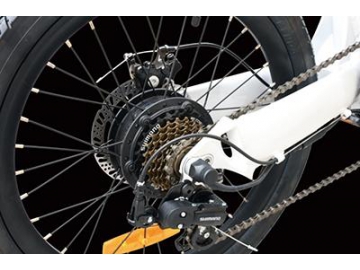

250W geared hub motor The 250 W geared hub motor provides a 30 N·m torque, with the highest speed reaching 32km/hour.
-

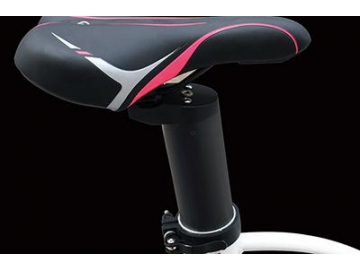

7.8Ah lithium battery We use 7.8Ah seat-post battery, which is used as seat post. The bike runs for 50 to 60 km at a full charge, and the battery can be charged more than 500 times.
-

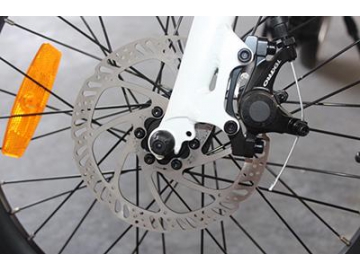

Brake A 180 mm TEKTRO mechanic disc-brake provides a strong braking force, even on loose terrain.
-

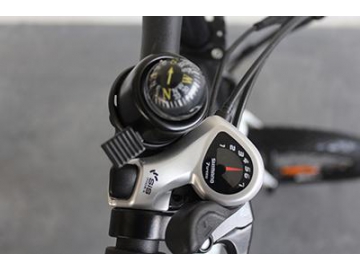

Mechanic derailleur This model bikes are equipped with a derailleur and can better save the user's physical strength.
-
Key-DISP liquid crystal display The Key-DISP liquid crystal display displays the electricity, speed, and run distance. An M key controls on/off of the LCD display, "+", "-" are the shift buttons to add and subtract gear. The display shows the voltage, and opening or closing of the instrument. The display also opens front or back lights, and shows the riding speed, gear position shift, single ride mileage, total mileage and breakdown analysis codes.
Motor's safety cut-off function
In case of emergency, press the two brake rods at the same time in order to automatically cut off the motor power supply, thus effectively ensuring user safety during an emergency.
-

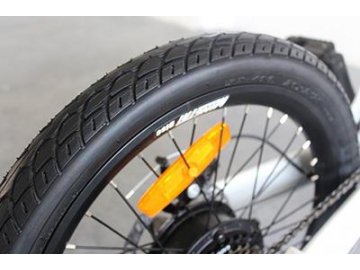

Tires of KENDA 20’’×2.125
-
Portable handlebars
