Ionizing Nozzle
| Product name | Model | External dimension (main body mm) | Mounting hole size (center distance of the four holes mm) | Operating voltage | Operating current |

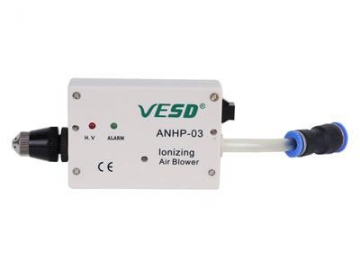

| Plastic ionizing nozzle | 80*30*51 | 68*19 | DC24V ±5% 2 P aviation plug | About 100MA | |

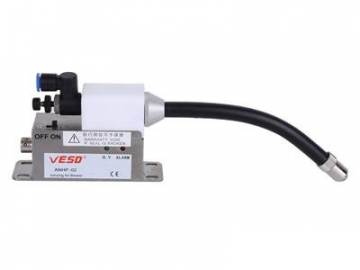

| Stainless steel ionizing nozzle | 95*28*56 | 81*18 | |||
| Small ultra-thin ionizing nozzle | 70*48*18 | 63*37 | DC24V±5% ;4pin terminal connector; With output function of remote alarm signal. |
Note: the products of different specifications can be customized as the clients' demands.
| Operating pressure | 0.05-0.5Mpa |
| Max. air volume | about 50L/Min |
| Working environment | 0-40°C (indoor) humidity: 35%-85% |
| Fault alarm method | LED display: the red light is on, meaning there is fault occurring, and the remote signal will be sent out. |
| Static elimination performance | The static elimination time is about 0.7S-1S. |
| Ion balance | ±15V |
| Standard accessories | 1. DC24V input line is equipped with aviation plug 2. DC24Vinput line is equipped with 4Pin terminal connector (2m length). 3. Electrode needle 4. mini air filter |
| Optional accessories | Flat shaped nozzle, tassel-shape nozzle, diffuse type nozzle, rod-like steel pipe, conductive calibration tube, gas gathering nozzle, and flexible hose. |
| Electrode needle material | Tungsten lanthanum titanium alloy material, 0.05-0.5Mpa (namely 0.5-5kg/cm3) |
| Note | Choose the M3 screw for fixing. 1L (cubic centimeter) =0.001m³ |
Features
1. The ionizing nozzle is equipped with an alarm function for high-voltage abnormal ionization to make it safer.
2. This ionizing nozzle can generate uniform and balanced ionic particles, and the high-density and stable ion environment is formed so that the corona discharge is generated in a short time.
3. There is no need of high voltage wiring, so the applying security is improved.
4. The ion can be transferred through the electrical or metal pipes.
5. With built-in small high-voltage power transformer, this ionizing nozzle can be used with low-voltage power.
6. This ionizing nozzle is of excellent ion balance to ensure the static elimination effect.
The static elimination capacity of this ionizing nozzle is tested following the American standard EOS/ESD-STM3.1-2000. And its parameter has been adjusted when leaving the factory. You can refer to the following for the static elimination performance:| Air pressure (MPa) | 0.3 | 0.4 | 0.5 | 0.6 |
| Positive electricity elimination time (sec) | 0.4 | 0.4 | 0.3 | 0.3 |
| Negative electricity elimination time (sec) | 0.5 | 0.4 | 0.3 | 0.3 |
| Ion balance (V) | Within 0±15V | |||
Note: the results obtained from different testing environment may exit slight difference, and the above data is only for reference.
