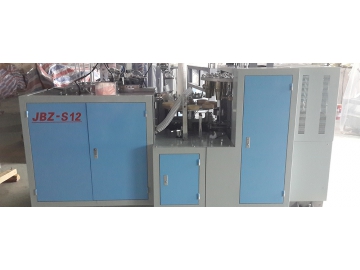

JBZ-S04/S12/S16/S22 Paper Cup Machine
With a high degree of automation, the JBZ-S paper cup machine is used to produce one side or two side film-coated paper cups. The formed cup can hold both hot and cold beverages such as soft drinks, coffee and tea, etc. This machine uses an ultrasonic sealing system, resulting in a sound welding effect, low energy consumption and high efficiency. It is built with a working station and can perform all the necessary cup making steps including, automatic paper feeding, ultrasonic welding, oiling, bottom punching, heating, knurling, curling and cup discharge.
Technical Specifications| Model | JBZ-S04/12 | JBZ-S22 | JBZ-S36 |
| Cup Size | 2, 4, 4.5, 6, 8, 12 oz. | 16, 22 oz. | 36 oz. |
| Raw Material | One side or two side PE coated paper | ||
| Top Mouth Diameter | 40-95mm | 35-70mm | 35-70mm |
| Height | 50-120mm | 80-175mm | 100-195mm |
| Bottom Depth | ≤10mm | ≤10mm | ≤10mm |
| Angle | 2-8° | 2-8° | 4-8° |
| Capacity | 40-50 pcs/min. | 35-45pcs/min. | 35-45 pcs/min. |
| Power Source | 380v/50HZ (it can be changed according to specific customer requirements) | ||
| Total Power | 6.5kW | ||
| Weight | 1600kg | 1900kg | 2200kg |
| Package Size (L×W×H) | 2800×1350×1800mm 800×750×1300mm | 3300×1450×2000mm 800×750×1350mm | 3900×1450×2200mm 830×750×1400mm |
| Air Source | 0.18m3/min | ||
Sini is a China paper cup machine manufacturer and supplier. We offer paper cup machine, and paper cup handle machine, paper plate forming machine, automatic plastic thermoforming machine, paper bowl forming machine. Our high quality products are offered at competitive prices. Sini is located in China, and the full chain of manufacturing paper cup sleeve machine, cake tray forming machine can be completed in China, even in one city. Lower manufacturing cost saves your purchasing cost. The more details of each product are shown on the page with description.
