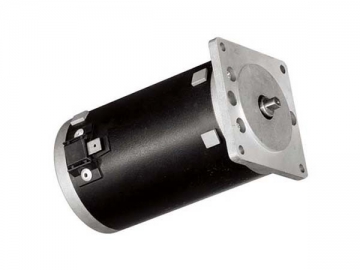

PMDC Brushed Motor, 73mm

: http://changyimotor.com

73mm PMDC

Features
1. The motor housing undergoes a black powder-coating for anti-rust performance.
2. Die cast aluminum end bells are ready for further machining if necessary to achieve a light motor weight.
3. High-quality ferrite permanent magnets are utilized to achieve smooth electric motor performance.
4. Our dedicated manufacturing staff and production management work to ensure low noise and less vibration during operation.
5. Commonly applied to powered chairs, X-ray machines and door openers.

General Specifications

Voltage Range	12 & 24 VDC (240VDC also available)
Power Output Range	100-190 W
Speed Range	1000 -6000 RPM
Operational Temperature	–20 ℃ ~ 40 ℃
Insulation Class	F (contact us for class B)
Housing Type	Closed (ventilated also available)

Download PDF

73ZYT001

Part Number	Voltage	No load Current	No load Speed	Torque	Rated Current	Rated Speed	Rated Power	Length
Units	V	A	RPM	Nm	A	RPM	W	m m
73ZYT001	12	3	4400	0.3	15	3700	116	145

73ZYT002

Part Number	Voltage	No load Current	No load Speed	Torque	Rated Current	Rated Speed	Rated Power	Length
Units	V	A	RPM	Nm	A	RPM	W	m m
73ZYT002	12	2.5	4000	0.4	16.5	3200	134	155

73ZYT003

Part Number	Voltage	No load Current	No load Speed	Torque	Rated Current	Rated Speed	Rated Power	Length
Units	V	A	RPM	Nm	A	RPM	W	m m
73ZYT003	12	2	3600	0.5	18	3000	157	165

73ZYT005

Part Number	Voltage	No load Current	No load Speed	Torque	Rated Current	Rated Speed	Rated Power	Length
Units	V	A	RPM	Nm	A	RPM	W	m m
73ZYT005	24	2	3600	0.5	10	3000	157	165

Motor outline
