Railway Bolt

: http://railfasteners.com

Depending on which part they are applied to, railway bolts can be divided into track bolt and clip bolt.

Track bolt is also known as fish bolt, which is one of the most important rail fasteners. It is used to fasten and connect two rails, of which the dimension changes as rail section requirements update. Generally, track bolt is used in combination with railway washer and nut to fasten track tightly. According to the shapes, track bolts can be classified into button head oval neck, diamond neck, square head, hex head track bolts etc.

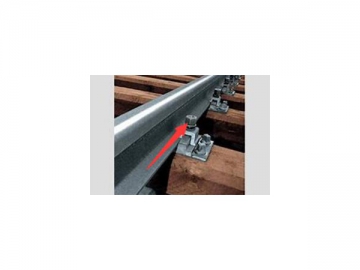

Clip bolt is also called clamp bolt, inserted bolt, T-bolt. Used in conjunction with nut and washer for fastening of rail pad, sleeper and rail, it can play a good role in shockproof and shock absorption.

Depending on application conditions, clip bolts have a wide variety of specifications, grading from 4.6/5.6/8.8/10.9/12.9. The surface is required to be natural, electrogalvanized, hot-dip galvanized or dacromet etc.

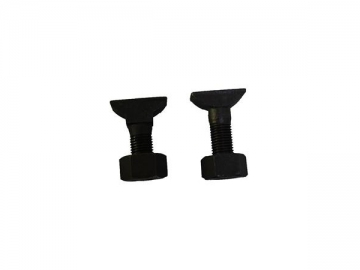

HS26/HS32 railway bolts for ribbed base plate are available in various dimension as below, as per UIS864-2.
Material: Q235, 35# and 45#
Grade: 4.6, 5.6, 8.8
Surface: Plain, black painting
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets or according to clients' requirement

Type	Dimension	Weight (Kg)
HS26/55	M22 ×55/40 Nut M22/H22/S39	0.45
HS26/65	M22 ×65/45 Nut M22/H22/S39	0.475
HS26/90	M22 ×90/45 Nut M22/H22/S39	0.549
HS32/55	M22 ×55/40 Nut M22/H22/S39	0.469
HS32/65	M22 ×65/45 Nut M22/H22/S39	0.503
HS32/90	M22 ×90/45 Nut M22/H22/S39	0.577

We produce large quantities of railway bolts including clamp bolt and inserted bolt for the Russian market
Material: Q235, 35# and 45#
Grade: 4.6, 4.8, 5.6, 8.8
Surface: Plain, black painting
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets or according to clients' requirement

Item	Dimension	Weight (Kg)
Clamp bolt with nut	M22 ×75 M22/S36/H22	0.475
Inserted bolt with nut	M22 ×175 M22/S36/H22	0.78

We produce rail bolt and clip bolt for concrete sleeper and crane rail. The diameter is 18mm and 22mm, its length varies from 125mm to 195mm, the railway bolt material is in accordance with UIC864-2, and the grade is 4.6 and 5.6.

We produce the short clip bolt and long clip bolt with BSW thread for the African market. Round or square necks are mainly used with steel sleeper assemblies together with rail clips.

M20 X 60 30Kg rail
M20 X 75 30Kg rail
M22 X 66 40Kg rail
M22 X 80 48Kg rail

Assembly with heavy series nut and spring washer optional

Material: Q235, 35# and 45#
Grade: 4.6, 4.8, 5.6, 8.8
Surface: Plain, black painting
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets or according to clients' requirement

We can also produce the special clip type railway bolt according to our customers' requirement.
Material: Q235, 35# and 45#
Grade: 4.6, 4.8, 5.6, 8.8
Surface: Plain, black painting
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets or according to clients' requirement

Sticking to our quality first policy, SUYU pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of high quality and up to customers' requirements.

As a leading manufacturer of rail fastening based in China, SUYU also produces many other railway fasteners, such as track bolt, track spike, sleeper screw, rail anchor, rail joint bar, tie plate, rail clip, elastic rail clip, SKL tension clamp, rail shoulder, and so on.
