RGBW Color LED Strip Light

RGBW Color LED Strip Light
RGBW Color LED Strip Light
RGBW Color LED Strip Light
RGBW Color LED Strip Light
RGBW Color LED Strip Light
RGBW Color LED Strip Light
RGBW Color LED Strip Light
RGBW Color LED Strip Light
RGBW Color LED Strip Light
RGBW Color LED Strip Light
  • LED type SMD5050
  • LED quantity 30pcs/m (9pcs/foot)
  • IP rating IP20
  • Light color RGB +White

Characteristics
The RGBW color LED strip light includes a 5m colored LED strip, power adapter, controller, 3M adhesive backing and silicone-made buckle.

  • Light strip displays a mixture of white and RGB color, with a controller to create variable colors, suitable for decoration.
  • The LED bare plate features smooth surface, high light transmittance, good look and feel.
  • The LED strip light is non-waterproof, so it's only suitable for indoor decoration, including ceilings, stairs and sofa edge.
  • When the rated DC voltage is 12V, the maximum power will be 7.2W, environmental protection and energy saving.
  • The light strip is available in 5m, and you could cut a different length for your request.
  • The flexible FPC-made LED substrate allows a bending angle of no less than 60°and a bending diameter of no less than 7cm.
Technical specification
LED strip light specification
LED strip voltage(V) DC12V
Maximum power 7.2W
LED type SMD5050
Light color RGB +White
Beam angle 120°
Material Fpc
Dimension 5000×10×0.2mm
Warranty 2 years
IP mode No
IP rating IP20
Working temperature -40-50℃
Storage temperature -50-60℃
Inner package 5M/Roll
Parameters for adapter
Input voltage AC100-240V
Input frequency 50/60 Hz
Output voltage DC12V (constant voltage)
Output current 2A(Max)
Output frequency 24W(Max)
Over voltage protection 15V (MAX)
Environment temperature 0℃-40℃、10%RH-90%RH
Storage temperature -20℃-60℃、5%RH-90%RH
Plug EU/US/AU/BS etc.
Wire length 1.5M
Parameters for the controller
Controller voltage DC12V
Control type 24-key infrared remote controller
Output 3 Channels (3×2A)
Power 72W (Max)
Lighting arrangement RGBW
Sensing distance 7M (Max)
Working temperature -20-50℃

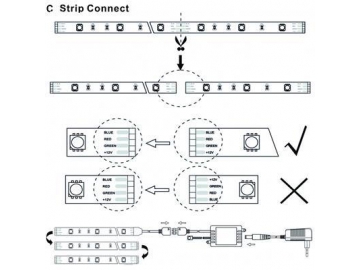

Strip light connection

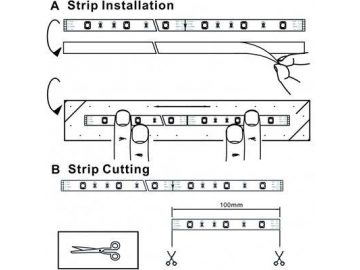

Installation
There is a 3M adhesive on back and you just need to tear off the protective paper and paste it on. We can cut the light strip into different length upon request.

Package
Applications
  • Billboards, lighting projects, house decoration or other lightings.
  • Outline or road markings.
  • Ceilings, corridors windows or roadway decoration.
  • Backlit nameplate or sign.
