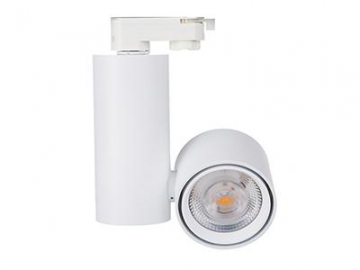

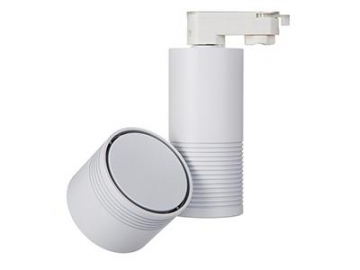

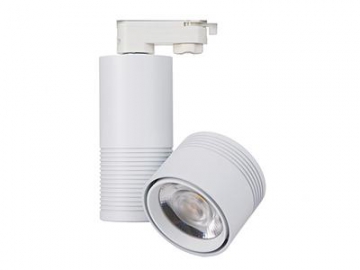

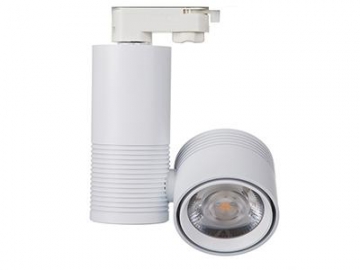

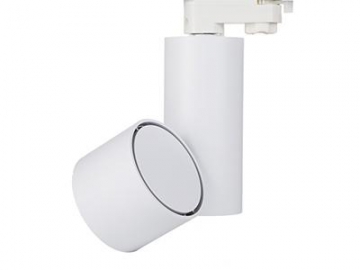

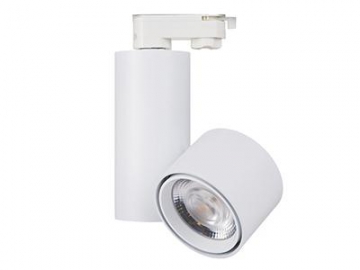

C Series Track Lighting LED Track Fixture
Features
- External power design offers better heat dispersion.
- C series LED track lights have different dimming options, such as DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee.
- If the CRI is up to 80, the luminous efficiency is more than 100Lm/w.
- The color render index (CRI) is Ra97+(2700K/3000K/4000K), which shows the true color of objects.
- The LED driver of the track light is of high quality. The light has no strobes, PF>0.95. The LED lighting fixture can eliminate the visual fatigue caused by traditional light flickering.
- Five kinds of power: 15W, 25W, 30W, 40W, 45W are available.
Product Models
| Model No. | Power | Dimension | |
| BH-TL-15W-C | 15W | Φ90*165*195mm | |
| BH-TL-25W-C | 25W | Φ90*165*195mm | |
| BH-TL-30W-C | 30W | Φ90*165*195mm | |

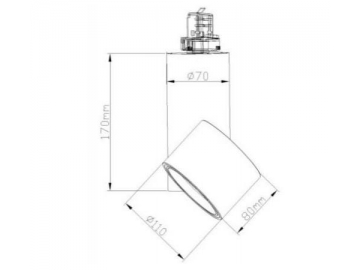

| BH-TL-40W-C | 40W | Φ110*185*225mm | |
| BH-TL-45W-C | 45W | Φ110*185*225mm |

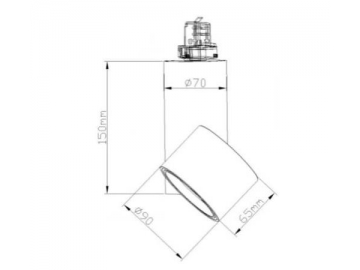

- 15-25W C Series LED Track Light
- 30-45W C Series LED Track Light
Specification
- LED Chip Citizen/CREE
- LED Driver Tridonic / Philips / OSRAM, Lifud, flicker-free
- Dimmable DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF >0.95
- THD <12%
- Input Voltage AC200-240V/AC100-240V
- CRI 80+90+97+
- CCT 2700K, 3000K, 4000K
- Luminous Efficacy >100 lm/W @CRI80 (whole lamp)
- Beam Angle 12°, 23°, 36°
- Body Material 6063 brushed aluminum alloy
- Light color Warm white, pure white, cold white
- Adjustable 350° rotation horizontally and 90° pivot
- Housing color Black/white/silver
- Track adapter Global/PowerGear
- Track adapter phase 1 /2 /3 phase
- Certificate CE, RoHS
- Lifespan 50000 hours
- Warranty 3-5 Years
Application

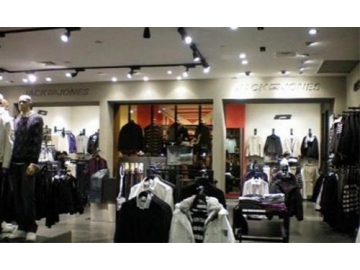

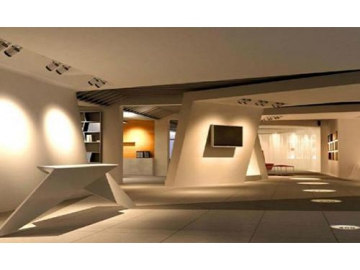

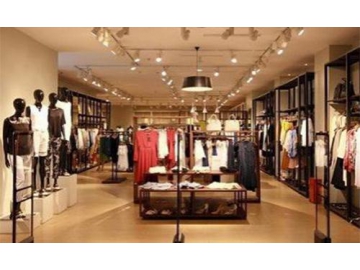

B series LED track lights can be used in galleries, museums, retail stores, shopping malls, exhibition halls and other commercial or private places.
Index
track lighting, track replacement light, LED tracking kits, track light fixture
