90°Punches/top-tools, Amada Press Brake Tooling

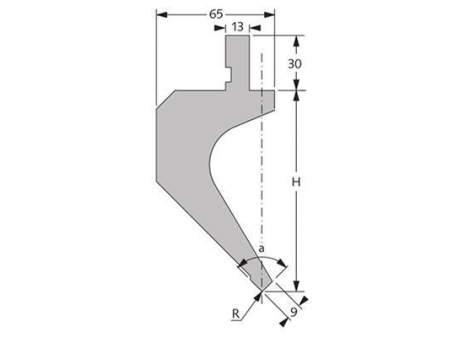

| F 11.005 (1000KN/m Max,H=90mm) | |
| 100mm | 0.42KG |
| Length | Weight |
| 200mm | 0.84KG |

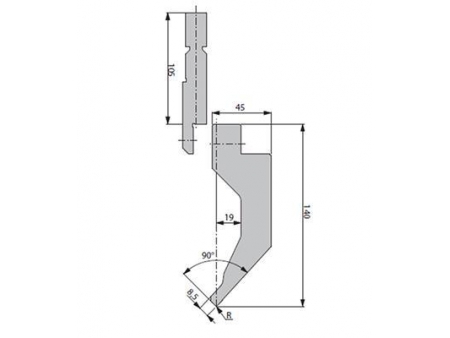

| F 11.009 (1000KN/m Max,H=140mm) | |
| 100mm | 1.20KG |
| Length | Weight |
| 200mm | 2.40KG |
| F12.019 (975KN/m Max, Radius=1mm, H=140mm) | |
| 100mm | 2.60KG |
| Length | Weight |
| 200mm | 5.20KG |

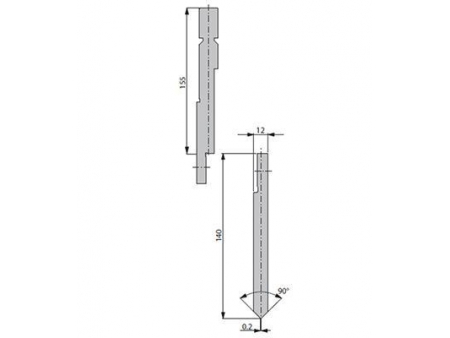

| F 10.048(F=500KN/m Max) | |
| Radius | 0.2mm |
| Length | Weight |
| Width | 65mm |
| Standard Length415mm | 13.07KG |
| Standard Length835mm | 26.30KG |
| F 10.048(F=500KN/m Max) | |
| Radius | 0.2mm |
| Length | Weight |
| Width | 65mm |
| Standard Length415mm | 13.07KG |
| Standard Length835mm | 26.30KG |
