88°Punches/top-tools, Amada Press Brake Tooling
| F 10.10(F=600KN/m Max) | |
| Radius | 0.2/0.8/3mm |
| Length | Weight |
| Width | 26mm |
| Standard Length415mm | 5.60KG |
| Standard Length835mm | 11.27KG |

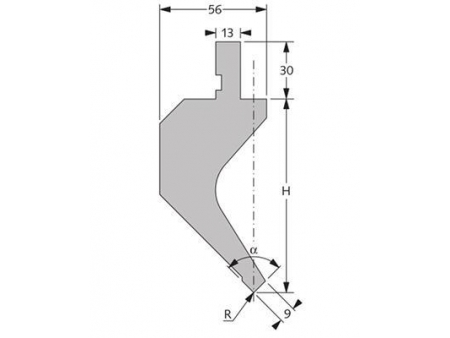

| F 10.14(F=500KN/m Max) | |
| Radius | 0.2/0.8/3mm |
| Length | Weight |
| Width | 56mm |
| Standard Length415mm | 10.38KG |
| Standard Length835mm | 20.88KG |
| F 10.15(F=500KN/m Max) | |
| Radius | 0.2/0.8/3mm |
| Length | Weight |
| Width | 56mm |
| Standard Length415mm | 11.08KG |
| Standard Length835mm | 22.29KG |

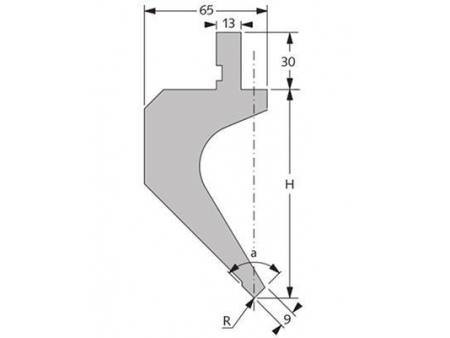

| F 10.047(F=500KN/m Max) | |
| Radius | 0.2/0.8mm |
| Length | Weight |
| Width | 65mm |
| Standard Length415mm | 13.07KG |
| Standard Length835mm | 26.30KG |

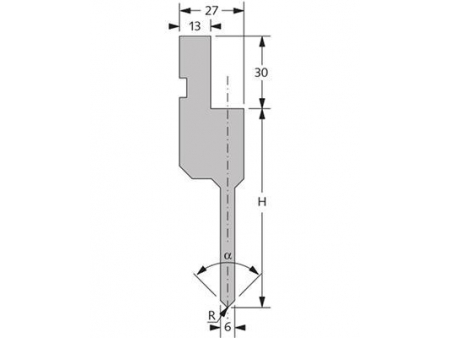

| F 10.109(F=500KN/m Max) | |
| Radius | 0.2mm |
| Length | Weight |
| Width | 27mm |
| Standard Length415mm | 4.77KG |
| Standard Length835mm | 9.60KG |
| F 10.116(F=200KN/m Max) | |
| Radius | 0.2mm |
| Length | Weight |
| Width | 26mm |
| Standard Length415mm | 4.98KG |
| Standard Length835mm | 10.02KG |
