30°Punches/top-tools, Amada Press Brake Tooling

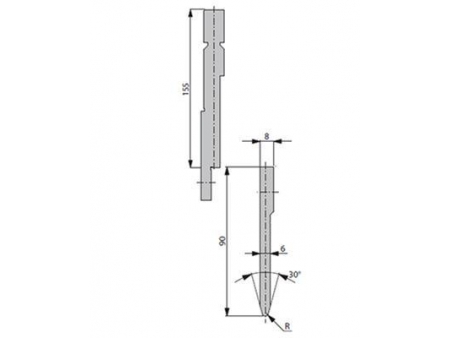

| F 11.001 (1000KN/m Max, Radius=1mm, H=90mm) | |
| 100mm | 0.397KG |
| Length | Weight |
| 200mm | 0.794KG |
| F 11.003 (1000KN/m Max, Radius=1mm, H=140mm) | |
| 100mm | 0.627KG |
| Length | Weight |
| 200mm | 1.254KG |
| F 11.006 (1000KN/m Max, Radius=2mm, H=90mm) | |
| 100mm | 0.448KG |
| Length | Weight |
| 200mm | 0.896KG |
| F 11.008 (1000KN/m Max, Radius=1mm, H=90mm) | |
| 100mm | 0.438KG |
| Length | Weight |
| 200mm | 0.876KG |
| F 11.010 (600KN/m Max, Radius=1mm, H=40mm) | |
| 100mm | 0.165KG |
| Length | Weight |
| F 11.034 (1000KN/m Max, Radius=3mm, H=90mm) | |
| 100mm | 0.451KG |
| Length | Weight |
| 200mm | 0.902KG |
| F 11.035 (1000KN/m Max, Radius=5mm, H=90mm) | |
| 100mm | 0.628KG |
| Length | Weight |
| 200mm | 01.256KG |
| F 11.036 (1000KN/m Max, Radius=6mm, H=90mm) | |
| 100mm | 0.733KG |
| Length | Weight |
| 200mm | 1.466KG |

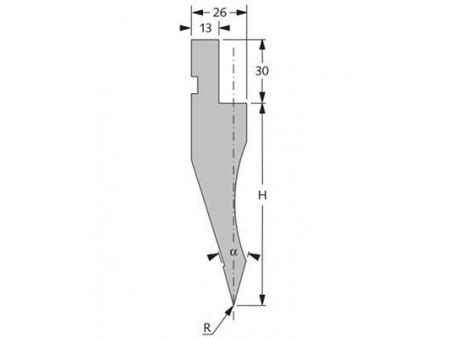

| F 10.12(F=500KN/m Max) | |
| Radius | 0.8mm |
| Length | Weight |
| Width | 26mm |
| Standard Length415mm | 5.81KG |
| Standard Length835mm | 11.69KG |
