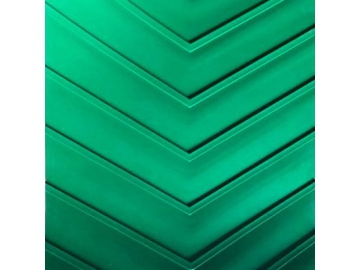

Chevron PVC Conveyor Belt
Applications: feeding conveyors, transportation conveyors
Processing: high temperature vulcanization, one-piece molding
Dimension: customizable and width up to 2m.
Parameters
| Colour | Green | Pattern | Chevron |
| Total thickness (mm) | 7 | Structure | Two fabric ply and two rubber ply |
| Material | PVC | Min. pulley diameter (mm) | 150 |
| Surface coating rigidity (Shore A) | 75 | Operating temperature (℃) | -10 -+80 |
| Tension for 1% elongation (N/mm) | 12 | Conveying mode (R=roller S=slab T=trough) | RST |
| Width (mm) | 2000 | Lateral stability | Yes |
| Number of layers | 4 layers | Tensile strength (N/mm) | ≧140 |
| Food grade | No | Low noise | No |
| Total weight (Kg/M2) | 8.5 | Splice | Seamless hot splicing/fastening |
