Ceramic Alumina Vulcanized Fiber Discs Manufacturer

Ceramic Alumina Vulcanized Fiber Discs

: http://indus-abrasives.com/1-4-3-ceramic-alumina-vulcanized-fiber-discs.html

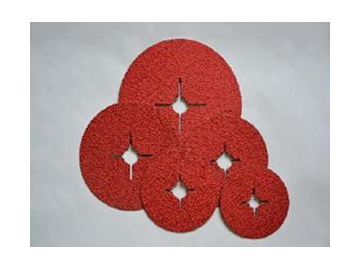

Joysun Ceramic Alumina vulcanized fiber discs are produced with the high performance ceramic alumina grains that are bonded onto a high strength vulcanized cotton fiber. They are specifically designed for aggressive grinding applications in order to reach maximum stock removal on hard materials that have poor heat conduction properties. The active ceramic alumina grains ensure significant abrasive performance increases and a reduction in heat build-up. Joysun Ceramic Alumina fiber discs can be operated at high speeds with superior service life and are perfect for powerful angle grinders in various applications for hard alloys, ferrous and non-ferrous materials, stainless steel and iron.

JAC-S967VF Ceramic Alumina Vulcanized Fiber Discs

Availability

Product Code	JAC-S967VF	JAC-S978VF	JAC-S989VF
Abrasive Grains	Ceramic Alumina	Ceramic Alumina	Ceramic Alumina
Fiber Back Thickness	Standard	Standard	Standard

SIZE ( D x H )	SIZE ( D x H )	GRIT	MAX	STD	PART #	PART #	PART #
SIZE ( D x H )	SIZE ( D x H )	GRIT	RPM	PACK	PART #	PART #	PART #
4" x 5/8"	100 mm x 16 mm	16	15,300	100	92201	92202	92203
		24			92214	92215	92216
		36			92227	92228	92229
		40			92230	92231	92232
		50			92243	92244	92245
		60			92256	92257	92258
		80			92269	92260	92261
		100			92272	92273	92274
		120			92285	92286	92287
4-1/2" x 7/8"	115 mm x 22.23 mm	16	13,300	100	92298	92299	92290
		24			92301	92302	92303
		36			92314	92315	92316
		40			92327	92328	92329
		50			92330	92331	92332
		60			92343	92344	92345
		80			92356	92357	92358
		100			92369	92360	92361
		120			92372	92373	92374
5" x 7/8"	125 mm x 22.23 mm	16	12,200	100	92385	92386	92387
		24			92398	92399	92390
		36			92401	92402	92403
		40			92414	92415	92416
		50			92427	92428	92429
		60			92430	92431	92432
		80			92443	92444	92445
		100			92456	92457	92458
		120			92469	92460	92461
6" x 7/8"	150 x 22.23 mm	16	10,200	100	92472	92473	92474
		24			92485	92486	92487
		36			92498	92499	92490
		40			92501	92502	92503
		50			92514	92515	92516
		60			92527	92528	92529
		80			92630	92631	92632
		100			92643	92644	92645
		120			92656	92657	92658
7" x 7/8"	180 mm x 22.23 mm	16	8,600	100	92669	92660	92661
		24			92672	92673	92674
		36			92685	92686	92687
		40			92698	92699	92690
		50			92701	92702	92703
		60			92714	92715	92716
		80			92727	92728	92729
		100			92730	92731	92732
		120			92743	92744	92745
