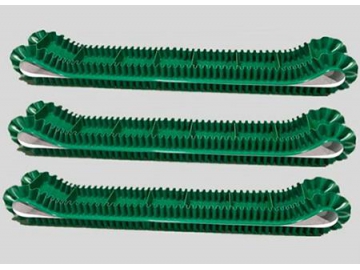

Sidewall PVC Conveyor Belt
Features: steep angle conveying, lifting
Processing: HTV
Size: maximum thickness: 3m
Color: Green, white
Parameters
| Colour | Green | Pattern | No |
| Total thickness (mm) | 3 | Structure | Two fabric and two rubber ply |
| Material | PVC | Min. pulley diameter (mm) | 90 |
| Surface coating rigidity (Shore A) | 75 | Operating temperature (℃) | -10 -+80 |
| Tension for 1% elongation (N/mm) | 12 | Conveying mode (R=roller S=slab T=trough) | RST |
| Width (mm) | 3000 | Lateral stability | Yes |
| Sidewall height (mm) | 10-120 | Tensile strength (N/mm) | ≧160 |
| Cleat height (mm) | 10-120 | Low noise | No |
| Cleats spacing | Random | Splice | Seamless hot splicing/fastness |
