LCK6120A Coach (Compass)

: http://zhongtongbuses.com/1-4-4-lck6120a-coach/index.html

This bus is specially designed for Africa market with Cummins engine in front. It features excellent cooling system, strong power, and low fuel consumption. The electric retarder works to enhance braking capacity, shorten braking distance and make the vehicle much safer. The metal covering in the front wall enhances the coach's safety. The coach possesses a powerful passing ability with the approaching angle reaching 13°.

Overall specification	overall dimension (mm)		11450	Engine	engine model	L325 20
	overall width (mm)		2550		manufacturer	Cummins (China)
	overall height (mm)		3850		engine position	Front
	body inside height (mm)		1940		engine type	6 cylinders in-line, turbocharged with intercooler
	wheel base (mm)		5800		max power (kw)	239
	front/rear overhang (mm)		2340/3310		max torque (N.M)	1350
	approach/departure (º)		9/13		displacement (l)	8.9
	first step height (mm)		480		bore/stroke mm	114X144.5
	max g.v.w. (kg)		18000		fuel
	seats capacity (person)		60 1/ 51 1	steering position
	max speed km/h		120
	luggage cabin m3		8
Item		Standard					Optional
Chassis specification	manufacturer	made in Zhongtong
	gear box	S6-160, ZF technology, six gears
	clutch	coil spring, Ø430
	front axle	7.5t front axle
	rear axle	13t third axle
	suspension	multi-leaf spring suspension
	steering	integral assistant power steering
	brake	dual circuit air braking, drum brake
	fuel tank	400L 400L
	tyre	315/80R22.5 double coin
	battery /dynamo	2×12V/195Ah / 28V /150A 140A
	others	brake slack auto adjuster, electric retarder, ABS

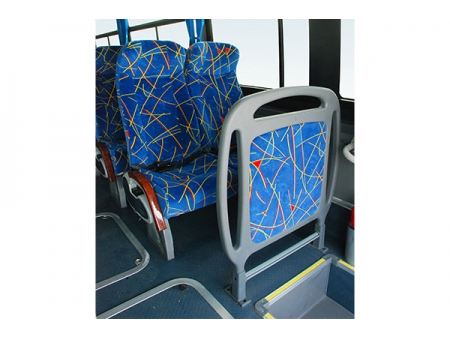

	seat	fixing type cloth seatsztzy3072, 3 2 layout 60 1, or 2 2 layout 51 1, driver seat ztzy1050
